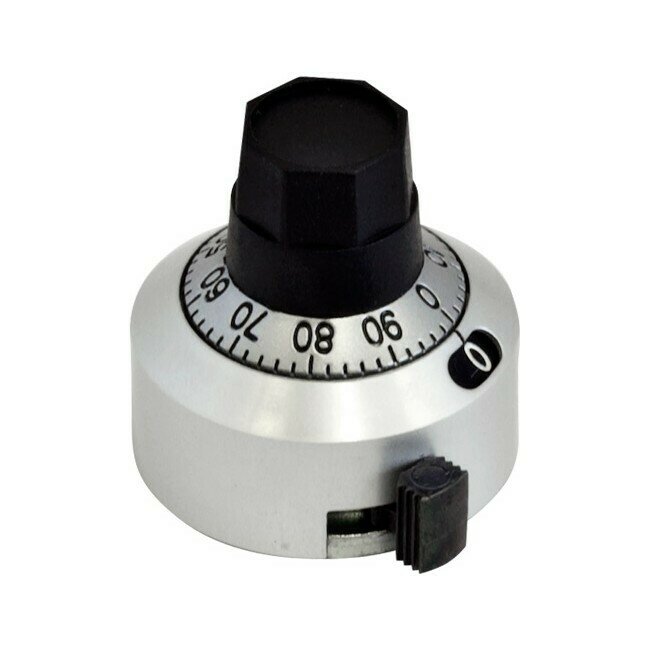

The inner scale of the Model 18 Multidial is graduated in fiftieths of a turn. The outer scale counts the number offull turns (0-14) that have been completed.
FEATURES:
No backlash
Compact-requires minimal panel space (22.2 mm diameter requirement)
For use with precision potentiometers or other rotating devices, up to 15 turns (Suits 534 series 10 turn pots)
Designed for metal shaft
High force “Click Brake” slide lock tab
Black color on request
High-impact, flame retardant case withstands shock and vibration abuse
Compact design requires minimal space
Allen key supplied
MECHANICAL SPECIFICATIONS:
Accepts Shaft Diameter: 6.35 mm (0.250&)
Size : 22.2mm O.D
Number of Turns: 0 to 15
Dial Division: 50 per turn
Torque with Brake Engaged: 5 oz. - in (350 gr - cm)min.
Markings: Black or satin chrome
Weight: 15 g
Set Srew: UNC 2-56
Hex Key Size: 1.27 mm (0.05&)
Bushing Extension Beyond Panel: 6.35 mm (0.250&) max.
Shaft Extension Beyond Panel: 18.1 mm (0.710&) min. / 22.2 mm (0.875&) max.
