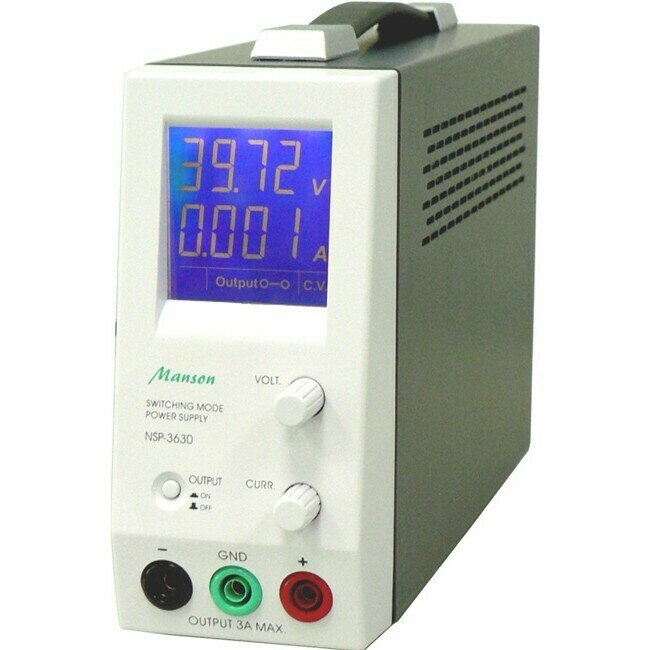

This series of 100W Switching Mode Power Supplies with Current Limiting Control is designed with the objectives ofhigh accuracy, compactness and easy portability.

4 digit display LCD of voltage and current for high precision. The slim tower housing makes it ideal for tight work bench. It is light and conveniently portable and a collapsible handle. The large and illuminated LCD display provides clear and sharp readings even under dim light. The output power on-off switch allows safe and handy operations.The Tracking OVP (output over voltage protection) ensures a better and tighter protection to voltage sensitive loads. It has good line and load regulations, high efficiency and low ripple and nose that are typical of advanced switching mode power supply.

It meets the CE safety standards EN-61010 for laboratory grade power supply and respective EMC standards.

• Automatic Cross over CV and CC mode
• Illuminated LCD indications of A, V, Output On-Off,CC and CV
• 4 digit displays of Volt and Amp meters
• Voltage and Current Controls
• Compact slim tower housing Collapsible handle
• Output power on off switch at front panel
• Natural Convection
• Tracking OVP(output over voltage protection), ShortCircuit, overload and over temperature protections
• Good line, load regulations and low ripple and noise
• Rotary encoder control
• CE approvals

• Input Voltage...200-240VAC, 50/60Hz~(or on request)
• Full Load Input Current at 230VAC...0.83A
• Output Voltage Adjustable Range...1-36VDC
• Output Current Adjustable Range...0-3A

• Load from 10% to 100% Variation...50mV
• Line from 180 to 264VAC Variation...20mV
• Ripple and Noise in r.m.s....5mV
• Ripple and Noise (peak to peak)...50mV

• Load from 10% to 100% Variation...20mA
• Line from 180 to 264VAC Variation...20mA
• Ripple and Noise (peak to peak)...20mA
• Switching Operation Frequency...80KHz to 120KHz
• Power Factor...0.68
• Efficiency at Maximum Power...85%
• Display...4 Digit
• Volt. Meter Accuracy...±1% +5 counts for range V =10V
• .....................................±1% +3 counts for range V >10V
• Curr. Meter Accuracy...±1% +5 counts for range V =1A
• .....................................±1% +3 counts for range V >1A
• LCD Indication...C.C., C.V. , Amp, Volt, output on/off
• Protection...Short Circuit, Overload, Over Temperature, Tracking OVP
• Approvals...CE EMC:EN55011 LVD:EN61010
• Cooling System...Natural Convection
• Dimensions (WxHxD) 70x150x250mm 2.8x6x9 inch
• Weight...Approx 2kgs 4.4lbs

Some novice users may find this feature confusing, assuming that when the device is powered then there is always output, or that this button turns the unit on or off.This video seeks to explain this feature.

Using the 3-stage adjustment knobs

Setting the Current and Voltage
