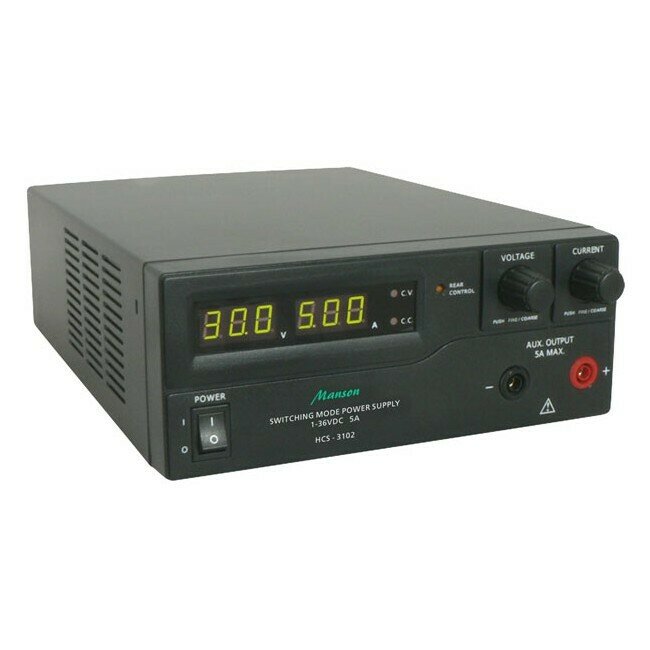

1-36VDC 5A REMOTE PROGRAMMABLE
Product Details
UPC: HCS3102
Brand: MANSON
{tab Features}
After the success of our previous HCS series, high power supplies, this new low power series has been developed with end-users' feedback in mind.
A USB control port has been added to allow cyclical operations with programmable voltage, current, period and time cycles.
Ideal for laboratory, university, workshop, production, quality control and sophisticated DIY applications.
Features
- Remote programmable by computer via USB
- 20 programmable sets of voltage, current and cycle periods for repetitive operations up to 999 cycles
- 3 user defined voltage and current panel presets for frequent use
- Wired remote control of Voltage, Current and Output on/off without computer
- Rotary encoder knob with fine and coarse adjustment
- Smart cooling fan speed control
- Self diagnostic check on LED display
- Isolated ground, Active PFC and high power efficiency
- Universal AC Input
- Overload, Tracking Over-voltage Protections
- Constant current limit setting with open circuit output
Specifications
| Model | HCS3102 | |
|---|---|---|
| Output | Variable Output Voltage | 1 - 36VDC |
| Variable Output Current | 0 - 5A | |
| Voltage Regulation | Load (10 - 100% Rated Current) | 50mV |
| Line (90 - 264VAC Variation) | 20mV | |
| Current Regulation | Load (10 - 90% Rated Voltage) | 100mA |
| Line (90 - 264VAC Variation) | 50mA | |
| Ripple & Noise | Ripple & Noise (r.m.s.) Voltage | 5mV |
| Ripple & Noise (peak-peak) Voltage | 50mV | |
| Switching Frequency | 100 - 120Khz~ | |
| Tracking Over Voltage Protections | O/P 1-5V : set voltage +2V O/P 5-20V : set voltage +3V O/P 20-36V : set voltage +4V | |
| Meter Type & Accuracy | Voltage Meter | 3 Digit LED Display ±0.2% +3counts |
| Current Meter | 3 Digit LED Display ±0.2% +3counts | |
| Input Voltage | 90 - 264VAC 50/60Hz~ | |
| Full Load Input Current (230VAC/100VAC) | 1.2/2.5A | |
| Efficiency (230VAC) | 84% | |
| Power Factor Control | Power factor correction >0.95 at optimal load | |
| Cooling Method | Thermostatic Control Fan from Zero to full speed | |
| Protections | Overload, Short Circuit by Constant Current, Output Tracking Over Voltage, Over Temperature | |
| Special Features | 3 User defined V & I preset, Remote control V, Iand output on-off | |
| Preset Cycle Programming | Max. 20 presets of V & I, Max. preset time 100 minutes (99min + 60sec), Max. preset cycle 999 |
|
| Approvals | CE EMC: EN 55011, 55022 LVD: EN 60950, 61010 | |
| Dimensions (WxHxD) | 200x80x208 mm 7.8x3.2x8.2 inch | |
| Weight | 2.4 kg 5.2 lbs | |
{tab Videos}
Checking/changing Output Presets
*Please note: The power supply in this video may be a different model
