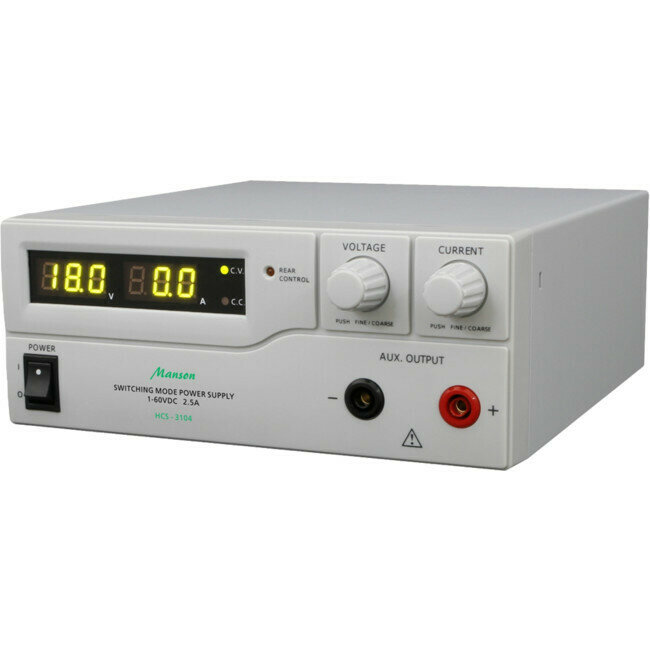

1-60VDC 2.5A LAB. POWER SUPPLY
SKU 33771662
AU$357.50
1
Save this product for later
1-60VDC 2.5A LAB. POWER SUPPLY
Product Details
UPC: HCS-3104-000G
Brand: MANSON
{tab Features}
{tab Apps for Raspberry Pi}
{/tabs}
Following up on the success of HCS series high power supplies, here comes up with this new range of low power supplies based on the feedbacks from end users. The new HCS3100 add an USB port for access to computer to run cyclical operation with programmable voltage, current, period time and cycles. The on-housing presets, separate remote control, rotary encoder dual action control for easy tuning of voltage and current, and all the features of the original HCS are kept. In addition it is of universal AC input voltage . It is probably the most cost effective Remote Programmable Power supply with such advanced features and protections. Itis ideal for laboratory, university, work shop, production, quality control and sophisticated DIY applications.
Features
- Remote Programmable via USB to computer
- 20 programmable sets of V, I & cycle periods for repetitive operation up to 999 cycles
- 3 user defined V & I panel presets for frequent use
- Analogue Remote Control of V, I, & output On-Off withoutcomputer
- Rotary encoder knob with definitive action of fine and coarse tuning
- Smart cooling fan speed control from zero to full speed
- Self diagnostic check on LED display and cooling fan on start up
- Isolated ground , Active PFC & high power efficiency
- Universal AC input
- Over load, Tracking Over Voltage Protections
- Constant Current limit setting with output open circuit
| Model | HCS-3104 |
| Output | |
| Variable Output Voltage | 1 - 60VDC |
| Variable Output Current | 0 - 2.5A |
| Voltage Regulation | |
| Load (10-90% Rated Voltage) | ≤100mA |
| Line(90-264VAC Variation | ≤50mV |
| Ripple & Noise | |
| Ripple & Noise (r.m.s) Voltage | ≤5mV |
| Ripple & Noise (peak-peak) Voltage | ≤50mV |
| Switching Frequency | 100 - 120KHZ~ |
| Tracking Over Voltage Protections |
O/P 1-5V: set voltage +2V O/P 5-20V: set voltage +3V O/P 20-60V: set voltage +4V |
| Meter Type & Accuracy | |
| Voltage Meter | 3 Digit LED Display ±(0.2% +3counts) |
| Current Meter | 3 Digit LED Display ±(0.2% +3counts) |
| Input Voltage | 90 - 264VAC 50/60Hz~ |
| Full Load Input Current (230VAC/100VAC) | 1.0/2.0A |
| Efficiency (230VAC/100VAC) | ≥83% |
| Power Factor Control | Power factor correction >0.95 at optimal load |
| Cooling Method | Thermostatic Control Fan from Zero to full speed |
| Protections | Overload, Short Circuit by Constant Current, Output Tracking Over Voltage, Over Temperature |
| Special Features | 3 User defined V & I present, Analogue Remote Control V, I and output on-off |
| Preset Cycle Programming |
Max. 20 presets of V & I, Max. preset time 100 mintues (99 min + 60 sec), Max. preset cycle 999 |
| Approvals | C-TICK/ SAA for power supply |
| Dimensions (WxHxD) | 200x80x208 mm |
| Weight | 2.4Kg |
Tablet PC becomes popular. MANSON thinks this will be a common platform for remote control console.
MANSON prepares an application in iPad/Android for Power Supply remote control and Digital Power Meter remote monitoring.
To enable MANSON USB ready devices to being managed in this platform, we use Raspberry Pi technology to make the connection happen.
You can connect Manson Power Supply and DPM with USB portto Raspberry Pi B+ model. Then they can be remotely controlled through TCP/IP network from iPad/Android.
To enable this feature, it just needs two things.
- Driver to run in Raspberry Pi. It can be downloaded in this page.
- iPad or Android apps. Search Manson Power Supply in Google Play or App store.
Please follow instruction in file to configure driver in Raspberry Pi
| Version | Note/ Description | File Size | Download Link |
| Raspberry Pi driver installation steps | 1.09M | Download | |
| 1.0 | This is driver for connecting Manson device to RaspberryPi through USB port. | 27.91kb | Manson_drive |
