100" 16:9 PULL DOWN SCREEN
SKU 43131834
AU$543.40
1
Save this product for later

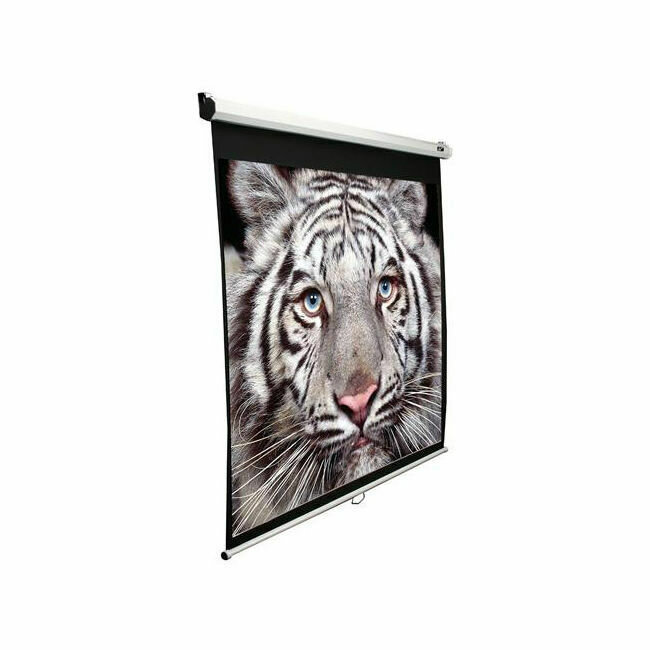

100" 16:9 PULL DOWN SCREEN
Product Details
UPC: M100XWH
Brand: ELITE
Elite Manual pull down series front projection screen isa great cost effective retractable screen with dual case design for wall or ceiling installation
Features
- Dual wall and ceiling installation design
- Auto-locking system provides variable height settings in any position
- Standard 4-side black masking borders
- MaxWhite screen material is durable and easy to clean
- 160° wide viewing angle for commercial presentations or residential home cinema
- Screen lanyard for easy operation included - allows screen's pull down handle to be reached from high areas
- Black backed screen material eliminates light penetration for superior color reproduction
- Diagonal sizes available range from 71" - 170" in 1:1,4:3, 16:9 and 16:10 aspect ratio
- Optional 6" and 12" L brackets available
- 2-year warranty
| Model Number | Nominal Diagonal (Aspect Ratio) | Case Length (A) | View Width (A1) | Screen Width (A2) | Weight Bar Length (A3) | Overall Height (B) | View Height (B1) | Top Black Masking (B2) | B3 | B4 | End Cap Height (B5) | End Cap Width (C) | C1 |
| M71UWS1 | 71"(1:1) | 1432.6 | 1275.1 | 1351.3 | 1427.5 | 1534.2 | 1275.1 | 114.3 | 1450.3 | 61.0 | 81.3 | 68.6 | 20.3 |
| M71XWS1 | 71"(1:1) | 1432.6 | 1275.1 | 1351.3 | 1427.5 | 1534.2 | 1275.1 | 114.3 | 1450.3 | 61.0 | 81.3 | 68.6 | 20.3 |
| M85UWS1 | 85"(1:1) | 1686.6 | 1526.5 | 1602.7 | 1681.5 | 1785.6 | 1526.5 | 114.3 | 1701.8 | 61.0 | 81.3 | 68.6 | 20.3 |
| M85XWS1 | 85"(1:1) | 1686.6 | 1526.5 | 1602.7 | 1681.5 | 1785.6 | 1526.5 | 114.3 | 1701.8 | 61.0 | 81.3 | 68.6 | 20.3 |
| M99UWS1 | 99"(1:1) | 1938.0 | 1778.0 | 1854.2 | 1932.9 | 2009.1 | 1778.0 | 76.2 | 1915.2 | 61.0 | 91.4 | 78.7 | 20.3 |
| M99XWS1 | 99"(1:1) | 1938.0 | 1778.0 | 1854.2 | 1932.9 | 2009.1 | 1778.0 | 76.2 | 1915.2 | 61.0 | 91.4 | 78.7 | 20.3 |
| M113UWS1 | 113"(1:1) | 2192.0 | 2029.5 | 2105.7 | 2186.9 | 2298.7 | 2029.5 | 114.3 | 2207.3 | 61.0 | 91.4 | 78.7 | 20.3 |
| M113XWS1 | 113"(1:1) | 2192.0 | 2029.5 | 2105.7 | 2186.9 | 2298.7 | 2029.5 | 114.3 | 2207.3 | 61.0 | 91.4 | 78.7 | 20.3 |
| M119UWS1 | 119" (1:1) | 2293.6 | 2136.1 | 2212.3 | 2291.1 | 2392.7 | 2136.1 | 101.6 | 2301.2 | 61.0 | 91.4 | 78.7 | 20.3 |
| M119XWS1 | 119" (1:1) | 2293.6 | 2136.1 | 2212.3 | 2291.1 | 2392.7 | 2136.1 | 101.6 | 2301.2 | 61.0 | 91.4 | 78.7 | 20.3 |
| M136XWS1 | 136"(1:1) | 2598.4 | 2443.5 | 2519.7 | 2593.3 | 2710.2 | 2443.5 | 114.3 | 2618.7 | 61.0 | 91.4 | 78.7 | 20.3 |
| M136UWS1 | 136"(1:1) | 2598.4 | 2443.5 | 2519.7 | 2593.3 | 2710.2 | 2443.5 | 114.3 | 2618.7 | 61.0 | 91.4 | 78.7 | 20.3 |
| M170XWS1 | 170"(1:1) | 3213.1 | 3053.1 | 3129.3 | 3208.0 | 3335.0 | 3053.1 | 114.3 | 3228.3 | 61.0 | 104.1 | 88.9 | 20.3 |
| M80NWV | 80"(4:3) | 1785.6 | 1625.6 | 1701.8 | 1783.1 | 1468.1 | 1219.2 | 114.3 | 1384.3 | 50.8 | 81.3 | 68.6 | 20.3 |
| M84NWV | 84"(4:3) | 1866.9 | 1706.9 | 1783.1 | 1861.8 | 1491.0 | 1280.2 | 76.2 | 1407.2 | 50.8 | 81.3 | 68.6 | 20.3 |
| M100NWV1 | 100"(4:3) | 2166.6 | 2032.0 | 2087.9 | 2161.5 | 1783.1 | 1524.0 | 114.3 | 1699.3 | 61.0 | 81.3 | 68.6 | 20.3 |
| M100UWV1 | 100"(4:3) | 2166.6 | 2032.0 | 2087.9 | 2161.5 | 1783.1 | 1524.0 | 114.3 | 1699.3 | 61.0 | 81.3 | 68.6 | 20.3 |
| M120XWV2 | 120"(4:3) | 2598.4 | 2438.4 | 2514.6 | 2593.3 | 2098.0 | 1828.8 | 114.3 | 2004.1 | 61.0 | 91.4 | 78.7 | 20.3 |
| M120UWV2 | 120"(4:3) | 2598.4 | 2438.4 | 2514.6 | 2593.3 | 2098.0 | 1828.8 | 114.3 | 2004.1 | 61.0 | 91.4 | 78.7 | 20.3 |
| M135XWV2 | 135"(4:3) | 2905.8 | 2743.2 | 2819.4 | 2903.2 | 2336.8 | 2057.4 | 114.3 | 2232.7 | 61.0 | 104.1 | 88.9 | 20.3 |
| M135UWV2 | 135"(4:3) | 2905.8 | 2743.2 | 2819.4 | 2903.2 | 2336.8 | 2057.4 | 114.3 | 2232.7 | 61.0 | 104.1 | 88.9 | 20.3 |
| M150XWV2 | 150"(4:3) | 3213.1 | 3048.0 | 3124.2 | 3208.0 | 2567.9 | 2286.0 | 114.3 | 2461.3 | 61.0 | 104.1 | 88.9 | 20.3 |
| M150UWV2 | 150"(4:3) | 3213.1 | 3048.0 | 3124.2 | 3208.0 | 2567.9 | 2286.0 | 114.3 | 2461.3 | 61.0 | 104.1 | 88.9 | 20.3 |
| M80UWH | 80"(16:9) | 1930.4 | 1770.4 | 1846.6 | 1927.9 | 1254.8 | 995.7 | 114.3 | 1170.9 | 61.0 | 81.3 | 68.6 | 20.3 |
| M84UWH | 84"(16:9) | 2014.2 | 1859.3 | 1935.5 | 2009.1 | 1303.0 | 1046.5 | 114.3 | 1221.7 | 61.0 | 81.3 | 68.6 | 20.3 |
| M84UWH-E30 | 84"(16:9) | 2014.2 | 1859.3 | 1935.5 | 2009.1 | 1953.3 | 1046.5 | 762.0 | 1869.4 | 61.0 | 81.3 | 68.6 | 20.3 |
| M84XWH-E30 | 84"(16:9) | 2014.2 | 1859.3 | 1935.5 | 2009.1 | 1953.3 | 1046.5 | 762.0 | 1869.4 | 61.0 | 81.3 | 68.6 | 20.3 |
| M92UWH | 92"(16:9) | 2166.6 | 2037.1 | 2093.0 | 2161.5 | 1404.6 | 1145.5 | 114.3 | 1320.8 | 61.0 | 81.3 | 68.6 | 20.3 |
| M100UWH | 100"(16:9) | 2374.9 | 2214.9 | 2291.1 | 2369.8 | 1513.8 | 1244.6 | 114.3 | 1419.9 | 61.0 | 91.4 | 78.7 |
20.3 |
| M100XWH | 100"(16:9) | 2374.9 | 2214.9 | 2291.1 | 2369.8 | 1513.8 | 1244.6 | 114.3 | 1419.9 | 61.0 | 91.4 | 78.7 |
20.3 |
| M100XWH-E24 | 100"(16:9) | 2374.9 | 2214.9 | 2291.1 | 2369.8 | 2009.1 | 1244.6 | 609.6 | 1917.7 | 61.0 | 91.4 | 78.7 | 20.3 |
| M106UWH | 106"(16:9) | 2507.0 | 2347.0 | 2423.2 | 2501.9 | 1587.5 | 1320.8 | 114.3 | 1496.1 | 61.0 | 91.4 | 78.7 | 20.3 |
| M106UWH-E24 | 106"(16:9) | 2507.0 | 2347.0 | 2423.2 | 2501.9 | 2054.9 | 1320.8 | 609.6 | 1991.4 | 61.0 | 61.0 | 61.0 | 20.3 |
| M120XWH2 | 120"(16:9) | 2816.9 | 2656.8 | 2733.0 | 2811.8 | 1762.8 | 1493.5 | 114.3 | 1668.8 | 61.0 | 91.4 | 78.7 | 20.3 |
| M120UWH2 | 120"(16:9) | 2816.9 | 2656.8 | 2733.0 | 2811.8 | 1762.8 | 1493.5 | 114.3 | 1668.8 | 61.0 | 91.4 | 78.7 | 20.3 |
| M120XWH2-E24 | 120"(16:9) | 2816.9 | 2656.8 | 2733.0 | 2811.8 | 2258.1 | 1493.5 | 609.6 | 2166.6 | 61.0 | 91.4 | 78.7 | 20.3 |
| M135XWH2 | 135"(16:9) | 3147.1 | 2989.6 | 3065.8 | 3144.5 | 1960.9 | 1681.5 | 114.3 | 1856.7 | 61.0 | 104.1 | 88.9 | 20.3 |
| M135UWH2 | 135"(16:9) | 3147.1 | 2989.6 | 3065.8 | 3144.5 | 1960.9 | 1681.5 | 114.3 | 1856.7 | 61.0 | 104.1 | 88.9 | 20.3 |
| M150XWH2 | 150"(16:9) | 3484.9 | 3319.8 | 3396.0 | 3479.8 | 2148.8 | 1866.9 | 114.3 | 2044.7 | 61.0 | 104.1 | 88.9 | 20.3 |
| M150UWH2 | 150"(16:9) | 3484.9 | 3319.8 | 3396.0 | 3479.8 | 2148.8 | 1866.9 | 114.3 | 2044.7 | 61.0 | 104.1 | 88.9 | 20.3 |
| M86UWX | 86"(16:10) | 2014.2 | 1851.7 | 1927.9 | 2009.1 | 1414.8 | 1158.2 | 114.3 | 1333.5 | 61.0 | 81.3 | 68.6 | 20.3 |
| M94UWX | 94"(16:10) | 2166.6 | 2024.4 | 2100.6 | 2161.5 | 1524.0 | 1264.9 | 114.3 | 1440.2 | 61.0 | 81.3 | 68.6 | 20.3 |
| M109UWX | 109"(16:10) | 2507.0 | 2347.0 | 2423.2 | 2501.9 | 1734.8 | 1468.1 | 101.6 | 1630.7 | 61.0 | 91.4 | 78.7 | 20.3 |
| M128UWX | 128"(16:10) | 2915.9 | 2755.9 | 2832.1 | 2913.4 | 1991.4 | 1722.1 | 114.3 | 1899.9 | 61.0 | 91.4 | 78.7 | 20.3 |
| M139UWX | 139"(16:10) | 3147.1 | 2994.7 | 3070.9 | 3144.5 | 2138.7 | 1872.0 | 114.3 | 2047.2 | 61.0 | 91.4 | 78.7 | 20.3 |
| M95UWC-E16 | 95"(2.35:1) | 2374.9 | 2214.9 | 2291.1 | 2369.8 | 1506.2 | 944.9 | 406.4 | 1412.2 | 61.0 | 91.4 | 78.7 | 20.3 |
| M114UWC-E18 | 114"(2.35:1) | 2816.9 | 2656.8 | 2733.0 | 2811.8 | 1745.0 | 1132.8 | 457.2 | 1653.5 | 61.0 | 91.4 | 78.7 | 20.3 |
| M128UWC-E20 | 128"(2.35:1) | 3147.1 | 2989.6 | 3065.8 | 3144.5 | 1948.2 | 1272.5 | 508.0 | 1844.0 | 61.0 | 104.1 | 88.9 | 20.3 |
| M142UWC-E22 | 142"(2.35:1) | 3484.9 | 3319.8 | 3396.0 | 3479.8 | 2136.1 | 1412.2 | 558.8 | 2032.0 | 61.0 | 104.1 | 88.9 | 20.3 |
| Note: Data Error may be ±1" | |||||||||||||
