100W AM/FM RECEIVER -MM PHONO
Product Details
UPC: AXR100
Brand: CAMBRIDGE AUDIO

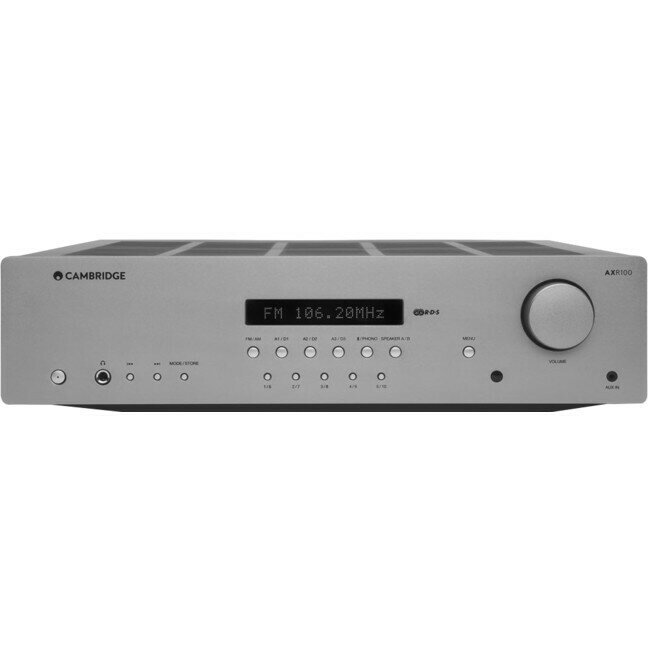

Cambridge AXR100 AM / FM Stereo Receiver
The AX Series pairs high quality with outstanding value for money and is the perfect way for the Hi-Fi curious to build their first stacking separates system.
Taking design cues from their award-winning Edge and CX ranges, Cambridge designed the AX components to be a straight forward introduction to Great British Sound.
It will change the way you appreciate music forever.
The most powerful amplifier in the AX range offers a massive 100 watts per channel, a dedicated subwoofer speakeroutput for improving bass and two sets of speaker outputs.
It also features analogue inputs, digital inputs, a phonostage, an FM/AM receiver with RDS and a 3.5mm input.
In addition, the built-in bluetooth receiver allows you stream your favourite music from your smartphone, tablet or PC.
Specifications
POWER OUTPUT
- 100 watts (into 8Ω)
THD (UNWEIGHTED)
- <0.01% @ 1kHz, 80% of rated power <0.15% 20Hz – 20kHz, 80% of rated power
FREQUENCY RESPONSE (-1DB)
- 5Hz – 50kHz
S/N RATIO (REF 1W)
- >82dB (unweighted)
INPUT IMPEDANCES
- 47k ohms
POWER AMP DAMPING FACTOR
- >50
STANDBY POWER CONSUMPTION
- <0.5W
MAX. POWER CONSUMPTION
- 550W
BASS/TREBLE CONTROLS
- Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz
SUBWOOFER OUTPUT
- 200Hz 2nd order L+R Level follows volume setting
DIGITAL INPUTS
- PCM 16-24-bit S/P DIF Co-axial 32-192kHz TOSlink Optical 32-192kHz
DIMENSIONS
- 110 x 430 x 340mm (4.3 x 16.9 x 13.4”)
WEIGHT
- 8.1kg (17.8lbs)
BLUETOOTH
- 5.0 A2DP/AVRCP supporting SBC
TUNER BANDS
- European AM (522-1629kHz) FM (87.5-108MHz) / US AM (530-1710kHz) FM (87.5-108MHz)
AERIAL INPUTS
- FM 75 ohms, Coaxial. AM 300 ohms wire loop/ single wire
SIGNAL TO NOISE (TUNER)
- 60dB typical (FM)
DISTORTION (TUNER)
- <0.4% @ 1kHz 50kHz deviation (FM mono) <0.6% @ 1kHz 50kHz deviation (FM stereo)
