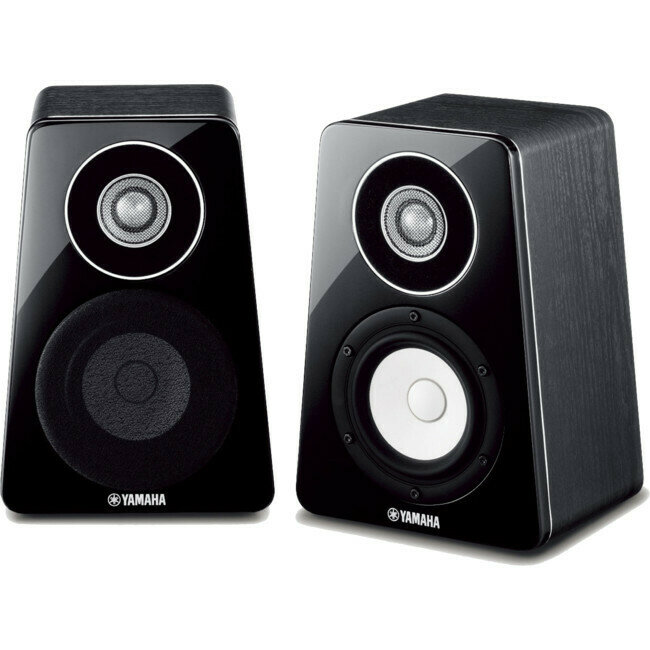

Designed for beautifully natural sound in the tradition of Yamaha's premier speaker range, the NS-B500 produces transparent and deep sound qualities with tight bass and a sense of rich detail and warmth.
Using precision manufacturing technology, the voicecoil for the tweeter Is wrapped directly over the aluminum-magnesium alloydiaphragm.
This design delivers increased amounts of sound information for smooth reproduction over an exceptionally wide sound spectrum.
The woofer utilises Yamaha's unique A-PMD cone together with a solid rubber surround, and large-diameter magnet structure. This assures rich, satisfying reproductionof mid-range and bass.
The entire unit is non-shielded, achieving impressively clear audio without distortion from magnetic shielding circuits.
Thanks to Yamaha's traditional expertise in cabinetry, starting with its three-way mitered joint construction, the audio quality from these speakers is natural and consistent.
The higher you turn the volume, the more impressed you'll be with the rich, clear sound from these compact speakers.
NS-B500 | ||
---|---|---|
SPEAKERS | ||
Type | 2-Way Acoustic Suspension Speaker System | |
Woofers | 12cm Advanced PMD cone | |
Tweeter | 3cm aluminium dome with DC-Diaphragm™ | |
Frequency Response | 50 Hz-50 kHz | |
Nominal Input Power | 30 W | |
Maximum Input Power | 120 W | |
Sensitivity | 84 dB | |
Crossover Frequencies | 4.2 kHz | |
Impedance | 6 ohms | |
Dimensions (W x H x D) | 190 x 284 x 177 mm | |
Weight | 3.5 kg |
