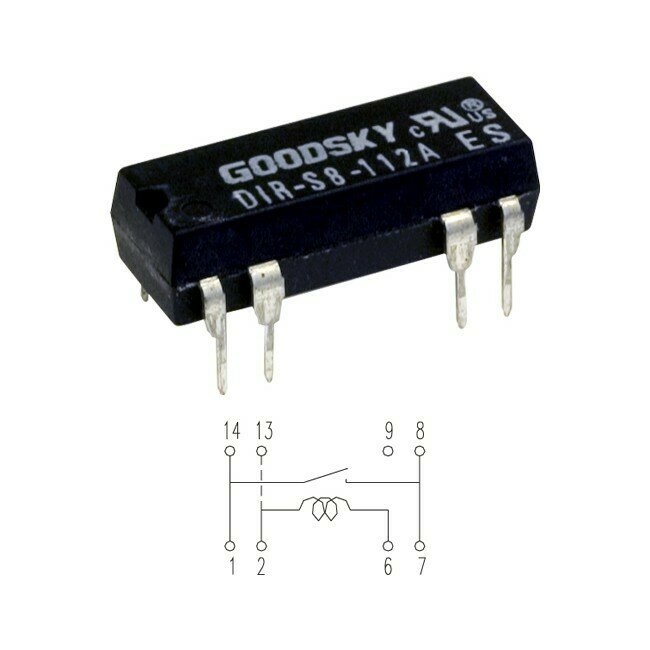

12V 1A SEALED DIL PITCH RELAY

Fully sealed construction (immersion cleanable). DIL pitch terminals. Usable in a wide range of environmental conditions .

Application : Security system, Modem and other telecommunication products.

FEATURES:

• Epoxy molded Dual-In-Line package.
• Low profile, mounting space compatible with DIP IC.
• Completely washable.
• Provide high speed, miniature and cost effective switching solution.


SPECIFICATIONS:

• Rated Load (Resistive): 0.5A 100VAC
• Rated Carrying Current: 0.5A
• Max. Allowable Voltage: 100 VAC
• Max. Allowable Current: 1A
• Max. Allowable Power Force: 50 VA
• Min. Switching Load: DC 1V, 1mA
• Contact Material: Ru Alloy
• Contact Form: SPST
• Contact Resistance.............150 mΩ Max.@ 100mA, 6VDC
• Operate Time......................0.5 mSec. Max.
• Release Time......................0.5 mSec. Max.
• Dielectric Strength:
  • Between Coil & Contact......1,000 VAC at 50/60 Hz for one minute.
  • Between Contacts...............150 VAC at 50/60 Hz for one minute.
• Insulation Resistance:..........100 MΩ Minimum
• Temperature Range:
  • Operating.............................-40~85 °C.
  • Storage................................-40~105 °C.
• Humidity Range...................45~85% RH.
• Vibration...............................20 G.
• Shock .................................100 G.
• Life Expectancy:
  • Electrical..............................1,000,000,000 Operations at ref. 10VDC, 10mA
• Weight………………………..About 1.8g
• Safety Standard & Its File Number
  • C-UL.....................................E141060.
