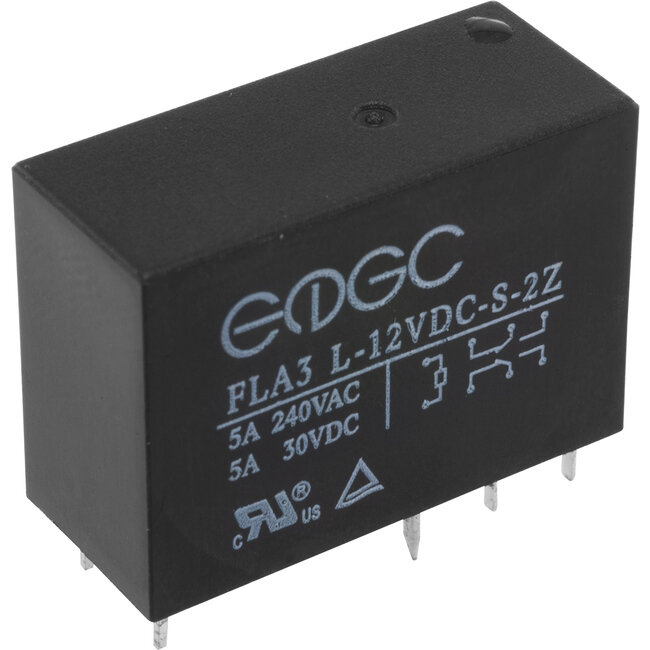

12VDC 10A DOUBLE POLE RELAY

Application : Cooking Appliances, Air Conditioner, Audio Equipment, Domestic Appliances, Controlling Equivalent, etc.

FEATURES:

• Designed with an insulation distance of 8mm Mininimum. The employment of insulation material is meeting to JIS insulation class E. Thus a Dielectric Strength of 5,000V Min. and Surge Strength of 10,000V Min. can be reached.
• The employment of suitable plastic materials is applied under high temperature condition and various chemical solutions.
• Complete protective construction is designed to protect the relay from dust and soldering flux. The plastic sealed type is available for washing procedure.


SPECIFICATIONS:

• Contact Resistance.............100mΩMax.@1A,6VDC
• Operate Time.......................15 mSec. Max. (D Type) 20mSec. Max. (L Type)
• Release Time......................8 mSec. Max.
• Dielectric Strength:
  • Between Coil & Contact......5,000VAC at 50/60Hz for one minute.
  • Between Contacts...............1,000VAC at 50/60 Hz for one minute.
• Surge Strength....................10,000V (between Coil & Contact 1.2x50μSec.)
• Insulation Resistance..........100 MegaΩ Min. at 500VDC.
• Max. On/Off Switching:
  • Electrical..............................6 Cycles per Minute.
  • Mechanical..........................300 Cycles per Minute.
• Temperature Range.............-30 - 55°C
• Humidity Range...................45- 85% RH.
• Coil Temperature Rise.........45°C Max. (D Type) 35°C Max. (L Type)
• Vibration :
  • Endurance............................10 to55 Hz dual amplitude width 1.5mm.
  • Error Operation....................10 to 55 Hz dual amplitude width 1.5mm.
• Shock :
  • Endurance ..........................1,000 m/S2.
  • Error Operation....................100 m/S2.
• Life Expectancy :
  • Mechanical .........................100,000,000 Operations at No Load condition.
  • Electrical..............................1,000,000Operations at Rated Resistive Load.
• Weight..................................About 12.2 g.
• Safety Standard & Its File Number
  • UL .......................................E141060
  • CSA ....................................LR76598-6
  • TÜV ....................................R9854160
  • FIMKO (MI-L/LM Type).......FI 11385
  • SEMKO (MI-L/LM Type).......9834069/01
  • VDE (MI-L/LM/D/DM Type)..6486ÜG
