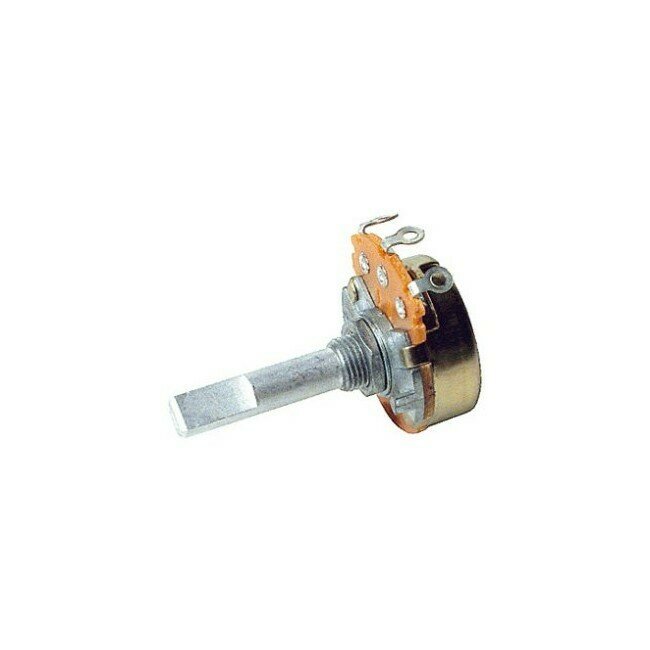

(24SN Replaces VCU) High quality rotary controls widely usedthroughout the industry for applications in the professional, industrial and entertainment electronics field. Produced by advanced manufacturing techniques using thequality materia ls, these rotary controls conform to: AS 1347 (1972) JIS 504 9, EIA RC682, UL E359611 (Specifications):
- Resistance Tolerance: 20%
- Rotation Angle: 20%
- Rated Temp. R ange: -25°C to + 70°C
- Operational Noise: <47mV
- I nsulation Resistance: 1000M 
- Isolation Voltage: 1000V AC 1Min
- Limiting Element V: Lin=500V Log=250V
- Wattage Rating (Max): .25Watt
- Shaft & Bush: 24mm L
- Shaft: 6.00 mm Ø Flat 11 mm L
- Overall Ø: 23.7MM
- Value: 1Meg 
- Curve: Linear
