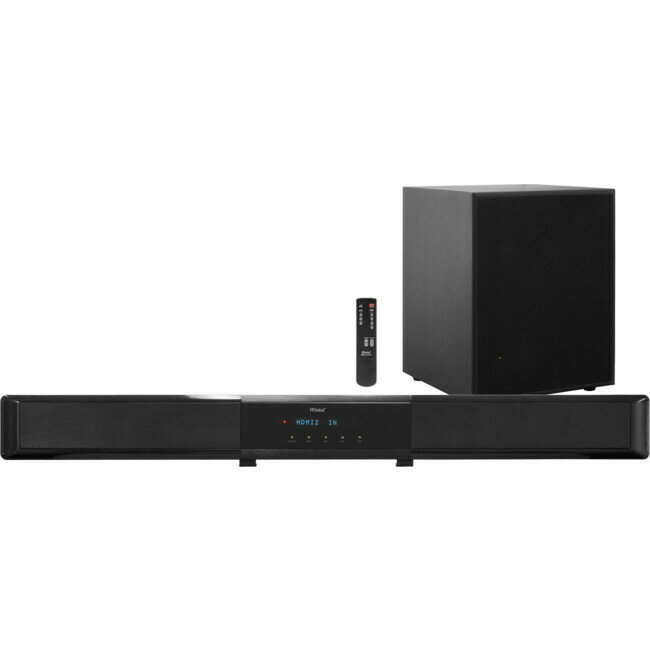

2.1CH Sound Bar & Wireless Sub

The downside to the latest and slimmest LCD and Plasma televisions are the fact that, by design, they incorporate low powered speakers that don't do your HD entertainment anyjustice. The Wintal WSB11 sound bar solves this problem by offering a virtual surround sound experience on par with a dedicated home theatre system. All in a compact and stylish package. Simply place or wall mount the WSB11 right underneath or above your TV, sit back and enjoy. The WSB11 includes a wireless subwoofer that can be placed anywhere inyour room providing a richer and deeper sound that would otherwise be impossible to achieve with your TV's built-in speakers.

Features

• 100 watts power (20W x 2 + 60W wireless subwoofer)
• Dolby Digital and DTS sound
• Can be wall-mounted or placed on a shelf or rack
• Fully functional mini remote control
• Touch sensitive capacitive front panel buttons

{tab Specifications}

Soundbar

• 4 x 2.5" Shielded drivers for Left and Right channel audio
• 4 ohms
• Inputs:
  • 2x HDMI inputs / 1x HDMI output
  • 2 x Coaxial / 1x Optical digital S/PDIF audio inputs
  • 2 x stereo RCA inputs (DVD + TV)
• Dimensions: Sound Bar 1000 (W) x 115 (H) x 65 (D) mm

Wireless Subwoofer

• 6.5" Shielded Driver
• Rated Power: 60 Watts
• 4 ohms
• Dimensions: 290 (W) x 375 (H) x 290 (D) mm

Click on images for larger version

The WintalWSB11 perfectly compliments your existing TV and the wireless subwoofer provides much needed bass that is missingfrom ordinary TV speakers.

Touch control front panel buttons with stylish LCD display.

Switch between sources, control treble and bass as well as subwoofer volume with the included remote control.



Click on images for larger version

TV and DVD RCA stereo audio rear inputs.

2x HDMI inputs, 2x coaxial and 1x optical digital audioinputs, plus an HDMI output.



{tab FAQ}

How to pair the wireless subwoofer?

1. Hold trigger button on the remote control while pointingat the Soundbar.
2. After 10 seconds the message "SYNC SUBWOOFER" appears.
3. Then point and hold remote at Subwoofer - the LED flashes Red/Green, and then will stay on steady Green once its paired

I'm having sound issues

The HDMI Inputs on the Wintal WSB11 only support Stereo PCM Audio data.
When using HDMI Input, set your Bluray/ DVDPlayer's HDMI Audio output to "PCM" — not "Bitstream". To use the WSB11 to downmix Dolby / DTS / AC3 audio, connect via Optical or Coax connection.

{tab Add-ons}

Bluetooth receiver add-on also available.

Wirelessly stream music from your phone! Simply attach the BMR3X to the soundbar to enjoy your tunes from your iPhone or any other Bluetooth enabled device. {/tabs}
