20DB AMPLIFIED CARAVAN ANTENNA
SKU 620010
AU$80.08
1
Save this product for later
20DB AMPLIFIED CARAVAN ANTENNA
Product Details
UPC: DAE-102CSE
Brand: DOSS
Why does the power supply distributor not have a power plug?
The power supply unit is supplied with a short 2.1mm DC plug with bare end lead(Please refer to the product image).If you'd prefer to use a standard power point, you can use apower supply 33774420 SM1205 . If you would like to plug the power into the cigarette socket in the car, please use acigarette lighter plug 07053013 CLP21. Or you can connect it with a battery.

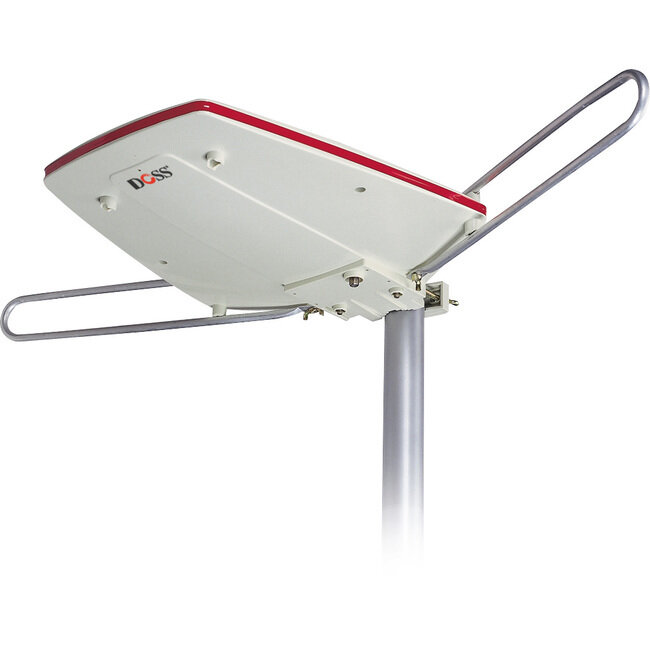

The DOSS Combo20 high gain aerial gives outstanding performance on analogue, digital and FM radio and is the ideal solution for any mobile setup, caravans, motor homes, and boats!
- The COMBO20 contains a built in amplifier that strengthens weak signals for clearer picture
- Power supply distributor box has a built-in splitter for a second TV outlet
- The DOSS Combo20 aerial is especiallygood in poor reception areas
- Ideal for your caravan, motor home, boat and even as aloft aerial at home
- It comes complete with cables, connectors and fitting instructions
- Easy to assemble and suitable for use throughout Australia
- Please note: The included Power Supply Distributor requires a 12V 100mA power supply.
Images
Specifications
| Channels | 0 ~ 69 |
| Frequency | VHF 40 ~230MHz, UHF 470 ~ 862 MHz |
| Gain | VHF20dB, UHF 19dB |
| Front Back Ratio | UHF16° ~ 6°, VHF 0° |
| Half Power Angle | UHF 55° ~ 65°, VHF 60°~80° |
| Output Impedance | 75Ω, F-Connector (Female) |
| Voltage Standing Wave Ratio | 2~3 |
| Noise Figure Max. | 4.5db |
| Max. Output Level | 100dBµV (IMA -69dB) |
| Applicable Temperature | -20°C ~ 50°C |
| Wind Surface | 0.181m2 |
| Wind Load | 12.67KPA |
| Fixed Mast Diameter | 15~56mm |
| Power Source | 12VDC / 100mA (Power supply not included) |
| Dimension | 400 x 350 x 105 mm |
| Weight | 2200 g |
*Please note: Mounting pole not included
In the Box
- Combo20 Antenna
- Power supply distributor box
- 6m sealed 'F-Type' to PAL lead
- Mounting hardware
User Manual
Download PDF here.
