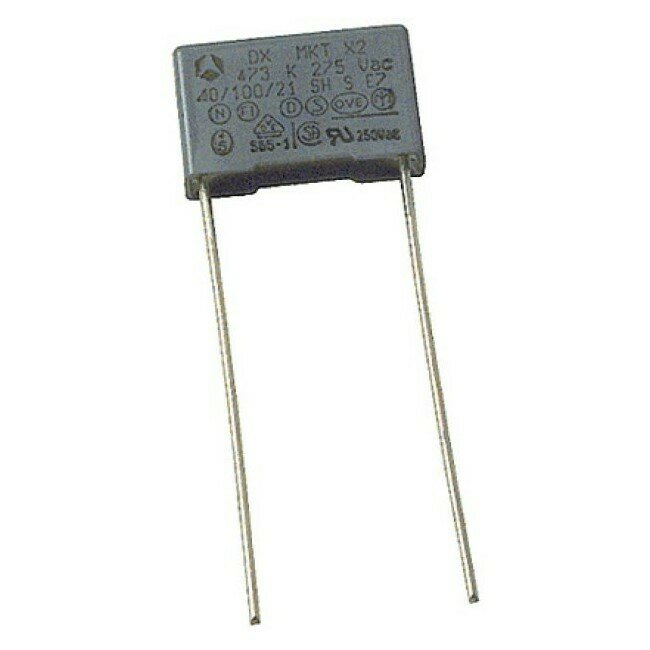

Metallised polyethylene terephalate film in epoxy resin, the Mainscap Capacitor designed specifically for use in 250V AC mainssuppression circuits. Typical applications include noise suppression of electric motors and industrial and domestic appliances.
- Voltage: 250V AC 50Hz
- Temp Range: -25°C ~ +85°C
- Cap Tolerance: .01 ~ .047 ±20% For C 2 0.1MF .1 ~ .47 ±10% For C > 0.1MF
- .22MF
- (WHD): 27 x 16.5 x 7mm
- Lead Spacing: 22.5mm
