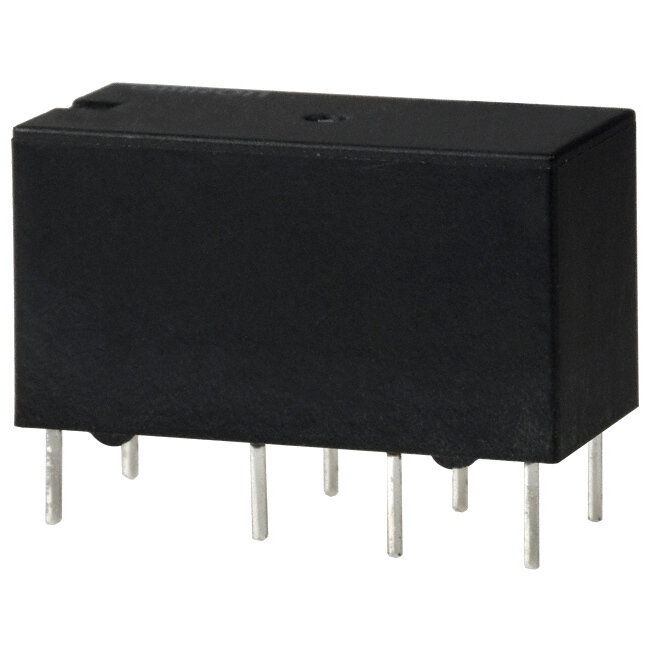

24V DC 1A DUAL INLINE RELAY

The Dual-in Line relay is designed to offer a completelydust and water-proof package with bifurcated and crossbar contacts for assuring high reliability.

Plastic sealed package and DIP terminal for flow-soldering process

Application : Telecommunication, domestic appliances, office machine, audio equipment, Remote Control, etc

FEATURES:

• Reliable Ag + Au clad contact type is suitable for low level switching application.
• Small size and light weight can provide high density P.C. Board mounting
• Capable of switching loads 10uA to 2 A
• Conforms to FCC part 68 1,500V surge withstand
• Employment of suitable plastic materials to be applied to high temperature and various chemical solution.
• Fully sealed construction.


SPECIFICATIONS:

• Contact Resistance.............100mΩMax.@0.1A,6VDC
• Release Time......................4 mSec. Max.
• Dielectric Strength :
  • Between Coil & Contact.......1,000VAC at 50/60 Hz for one minute.
  • Between Contacts................1,000VAC at 50/60Hz for one minute.
• Surge Strength.....................1,500V (between coil & contact 10 x 160μ.)
• Insulation Resistance..........1,000 MegaΩ Min.at 500VDC.
• Max. On/Off Switching :
  • Electrical..............................1,800 Cycles per hour. ( under rated Load )
  • Mechanical 36,000 Cycles per hour.
• Temperature Range..............-25 - 70°C
• Humidity Range....................5 - 85% RH.
• Coil Temperature Rise:
  • 25°C Max. (D Type)
  • 20°C Max. (T Type)
• Vibration:
  • Endurance.............................10 to 55 Hz dual amplitude width 1.5mm.
  • Error Operation.....................10 to 55 Hz dual amplitude width 1.5mm.
• Shock:
  • Endurance ...........................1,000 m/S2 .
  • Error Operation.....................100 m/S2 .
• Life Expectancy:
  • Mechanical ..........................15,000,000 Operations min at operating frequency of 36,000 operations per hr
  • Electrical ..............................1,00,000Operations min at 1,800 operations per hr
• Weight...................................About 5 g.
• Safety Standard & Its File Number
  • C-UL(D&T only)....................E41515
  • CSA(D&T only).....................LR31928
