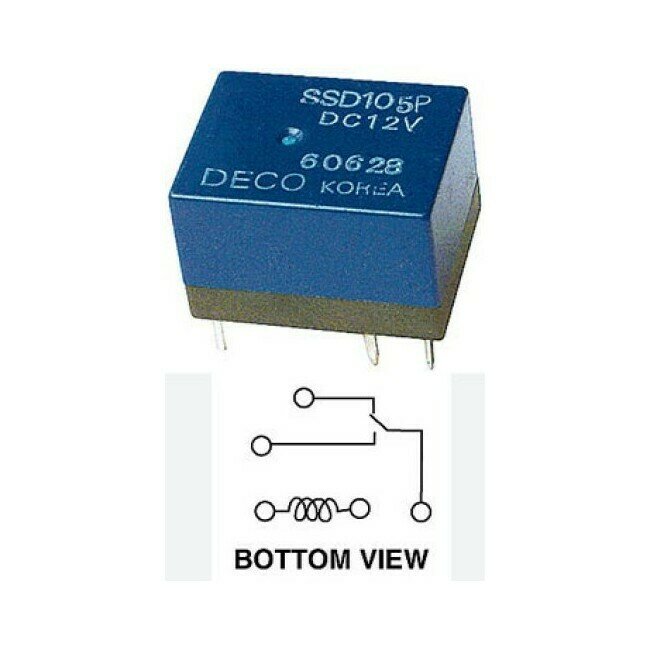

LOW-PROFILE ISOLATION RELAYS
- Conforms to Telecom Spec 1302
- Telecom Aust. Approval RA81/110
- Low profile (14.4mm board height)
- High isolation : ( 3.5kVrms 1 minute)
- 7kV - impulse (3 times for 40µS)
- Sealed and dustproof construction
- Switching capacity 0.1 ~ 5A (depending on contact material.)
- High sensitivity.
- Size: 21 x 13.6 x 16mm (WHD)
- Nominal Coil Voltage: 24V DC
- Coil Resistance (± 15% @ 20°C): 1280 
- Coil Current (at rated voltage): 18.5mA
- Contact Arrangement: SPDT (1 Form C)
- Max. Load Ratings (Resistive): 5A 125VAC/3A 250VAC/5A 30VDC
- Operate Time: 7ms 2
- Release Time: 4ms 2
- Max. Switching Frequency: 30 Imp/min
- R @ 20°C  ±10%: 1280
- V Pull-in @ 20°C 2 VDC: 15.6
- V max @ 20°C VDC: 36
- V max @ 85°C VDC: 17.3
- I @ 20°C mA: 18.5
- P @ 20°C mW: 450
- L mH: 1280
