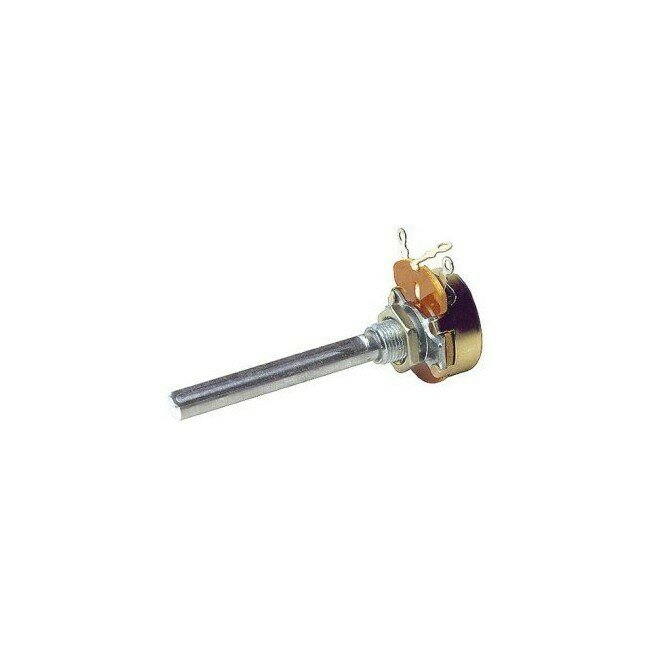

- Double contact wiper arm for reliable operation
- Chemically sealed base for very high insulation resistance
- One piece bush & plate
- High grade resistance element for long life
- 24mm Ø body supplied with pressed nut
- 6.5mm Ø aluminium shaft
- Total shaft length 69mm (Specifications):
- Resistance Law: Linear
- Resistance Tolerance: ± 10%
- Wattage Rating: 3Watt @ 25°C
- Bushing to Term. Rate: 1000V AC for 1m
- Across End-Term Rate: 500V DC
- Total Rotation: 300° ± 5°
- Effective Rotation: 280° (approx.)
- Value: 250 
