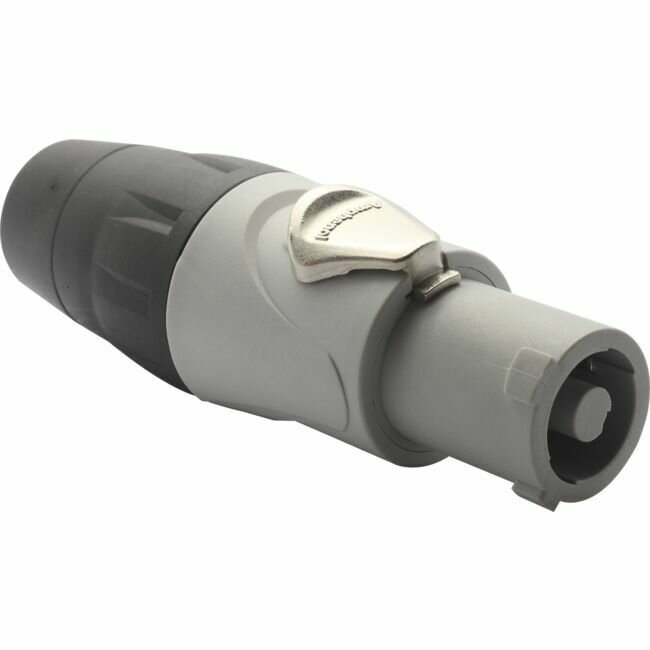

PD4024 25A 250VAC POWERCON CONNECTOR GREY KEYED FOR POWER IN PUT

HP Series connectors are suitable for AC power supply where a latch locking connector is required. They are rated at 25 A / 250 Vac. Connectors are keyed and colour coded forpower-in (Blue) and power-out (Grey).

{tab Features}

• Quick release, vibration resistant latch lock

• 3 pole

• Screw Terminals

• Chuck type cable clamp

• 25A Current rating

• Thermoplastic housing

• Industry standard mating

• UL, cUL recognized components (File no. E339831)

{tab Specs}

• Number of contacts: 2 + PE

• Termination: Screw

• Flammability: UL94HB

• Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
• Rated Operating Voltage 250VAC

• Test Voltage AC RMS 1500V

• Current carrying capacity 25A

• Typical Contact Resistance: =3mO

• Insulation Resistance (initial): =2GO

• Insulation Resistance (after damp heat test): =1GO
• Protection Class: IP54

• Operating Temperature: -25°C to +75°C (-13°F to +167°F)
• Weight - Thermoplastic: 32g (0.070lb)

• Typical Cable retention force: 200N (Subject to cable material and O.D.)

• Cable O.D range (Chuck Clamp): 5 - 15mm² (0.19& -0.59&)

• Conductor Size (Screw Terminals): 2.5mm² (AWG14)
• Connector Shell / Finish: PA66 GF30 / Black

• Insulators: PA66 GF30

• Cable Boot / Backshell: Santoprene / PBT

• Cable Clamp (Chuck): P.O.M

• Contact (Material / Plating): Brass / Silver
