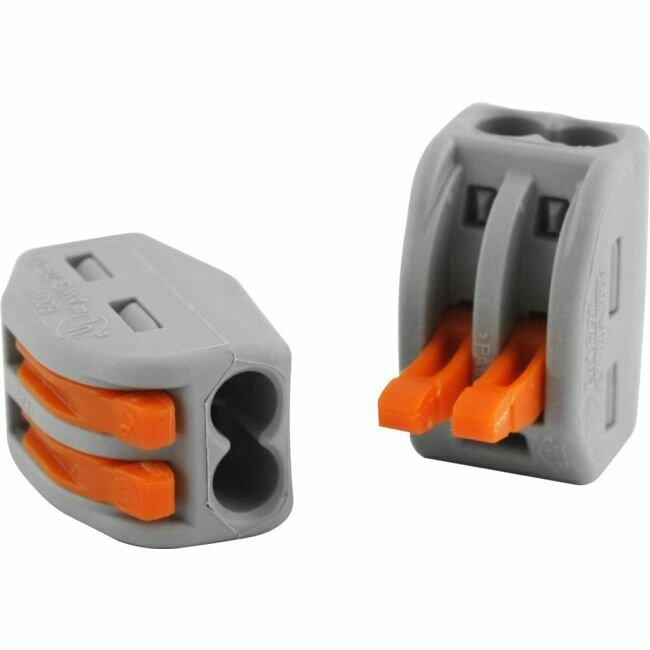

222 Series Compact Lever-Operated Connectors with CAGE CLAMP®

The compact splicing connector for all conductor types: By using the 222 Series splicing connectors, you can connectsolid conductors with a cross section of 0.08 to 4 mm² and fine-stranded and stranded conductors with cross sections from 0.08 to 2.5 mm². Without using any tools!

Wiring is very easy: Strip 9 - 10 mm/0.37 inches from thedesired conductor, open the clamping unit via the integratedlever, and insert the conductor. In addition to standard applications in building installations, these connectors canalso be fixed in position for use with mounting carriers, e.g. in distribution boxes.

In practical use, this connector can be used for intercomwiring, lighting fixtures, sunblinds, awnings, door and gatecontrols, inter phones, pumps, loudspeakers and many other applications … , without tools!

• Stranded / solid wires
• Wide range of wire sizes

• Combination of different wire sizes and types in one connector
• Small space consumption
• Built-in test point

• Protection against electrical shock, touch safe

• Low installed cost and safe operation

• Maintenance-free connection

• A reusable connector
