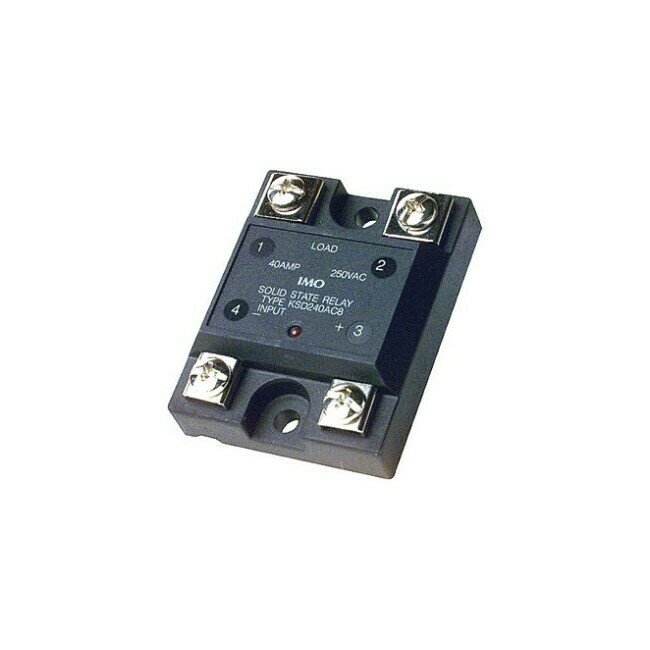

NORMALLY OPEN TYPE - OPTICALLY ISOLATED
- Photocoupler isolation for direct connection to IC logic circuits such as DTL, TTL, CMOS etc.
- Zero voltage turn-on, Zero current turn-off
- Faster switching response
- High surge current handling capability
- Requires minimum actuation power
- Easy to monitor red LED operation indicator
- No noise due to load current switching at near zero point
- Input Control Voltage Range: 4 ~ 32V DC
- Turn-on Voltage: 4V DC
- Rev. Voltage Protection: 32V DC
- Current Rating: 40 Amps
- Surge Current Rating: 425 Amp 16ms
- Size: 58 x 21 x 45.2mm (WHD).
