METRE CODE:
Please note that this product is sold in METRES.
Ensure that your order quantity matches your desired length (ie. 30 for 30m).
Length in brackets- eg. (100m) denotes available roll length.

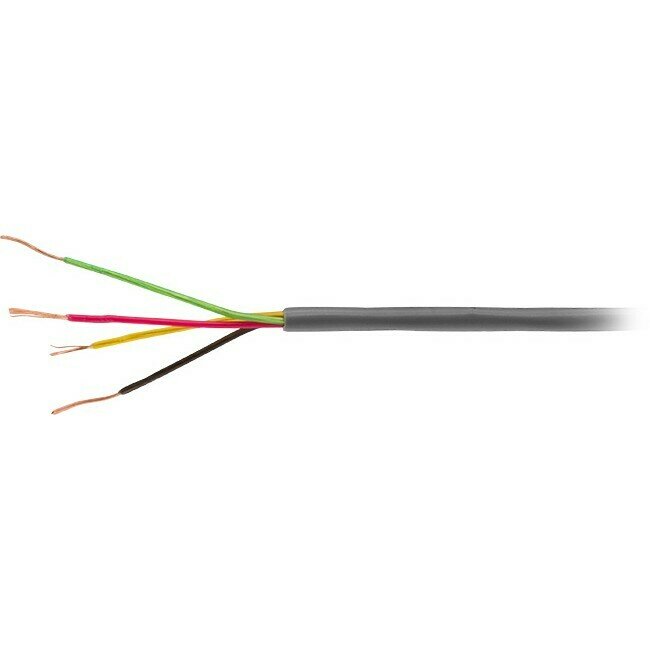

- 7 x 0.2mm stranded plain copper conductors
- Colour coded cores
- Grey PVC sheath
- Austel Approved
- Low voltage applications, like Security, Audio, etc.
- 4 core (4.8mmØ)
- Per metre
Common / Recommended Colour codes
PIR & other Security devices*
RS485 Data Bus
+PWR (Typ 12VDC)
+PWR
Common (Tamper)
Data A (+)
PIR (Alarm)
Data B (–)
PWR GND
GND
*Resistors are supplied with NESS PIRs that will linka &tamper& socket to an &alarm& socket. Follow the above for remaining connections.
