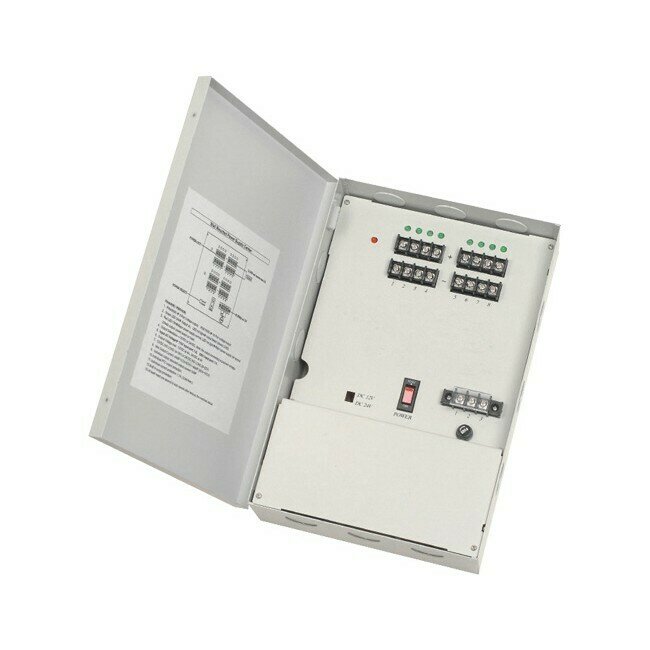

4Amp 8 port DC12V Regulated Wall Mounting Power Supply Builtin 3AMP Back up Battery
Specifications:
4AMP„» 8 Port Voltage output
Green LED ON: Output ok, LED not light: output failed (check LOAD)
Red LED ON: Major power supply normal, LED not light„»Major power supply not normal (check output: power switch or fuse)
Input AC Voltage„» 100V ~ 240V, L = LiveWire, N = Neutral Wire, E = Earth Wire.
Output Voltage load: 12VDC Regulated at 4AMP. (Recharge Battery status: 3.5AMP Max.)
Individual current protection: 1.1A, (2.5A/4sec.)
Max Output Current: 4AMP (1CH~8CH)
Individual output: standard output current 1AMP
Individual PTC output protection.
Individual current protection: 1.1A, (2.5A/4sec.)
Built in surge protection
At least need one second to auto rework after remove the overload status.
Built in 12V 3.3AMP Rechargeable Sealed Lead Acid Battery for power back up.
Automatic switch over to stand-by battery whenAC fails.
LED color Indication on Battery: Green: battery full, Yellow: battery recharging, Red: loss of AC, stand-by battery supplying power, Flash Red: low battery.
Features:
PW408U: 8 Port Voltage output.
Red LED for Main power.
Individual Green LED for power indication.
Individual PTC 1.1Amp, (2.5A/4sec.) fuse on each output protection.
Toroidal transformer for high efficiency andlow operating temperature.
