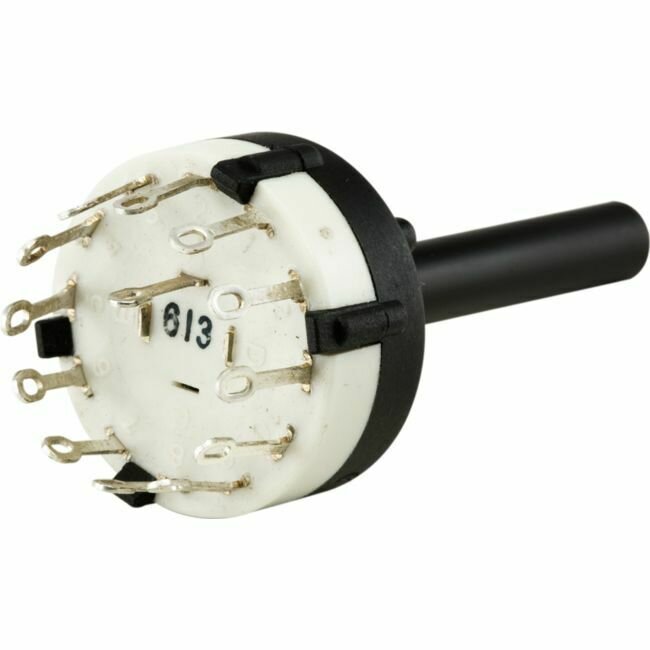

All moulded plastic, enclosed design with round type shaft. Posidex indexing gives excellent positive movement.
Rating | AC 125V 0.3A |
Contact Resistance | 50 m ΩMax. |
Insulation Resistance | DC500V-100 MΩ Min. |
Withstand Voltage | AC500V-1 Minute |
Contacts | Silver plated brass |
Connections | Solder tag |
Life | >10,000 cycles |
Rotation Torque | 0.5±0.2 Kg-cm |
Indexing | 30° |
Base Diametre | 26.2mm |
Shaft Length/Diam | 42/ 6.3mm |
Pole numbers | 4 |
Positions | 3 |
Dimension (m.m) | Refer to the following drawings |
