High performance speakers designed for home theater systems.
The EF (Elliptical Form) Series feature Waveguide horns, PMD(Polymer-injected Mica Diaphragm) woofers and highest quality internal Monster Cable wiring for total enjoyment ofdigital movie sound and music sources, plus elegant Yamaha traditional piano finish cabinets.
Adopting Yamaha’s unique piano black gloss finish and curved cabinet structure, the EF Series present a stylish option for home theatre.
With the dual 6” drivers in the main speakers, this series delivers serious home theatre.
Piano Black Design
Monster Cable
Fast, Quick, Responsive Speakers
Natural Design Speakers

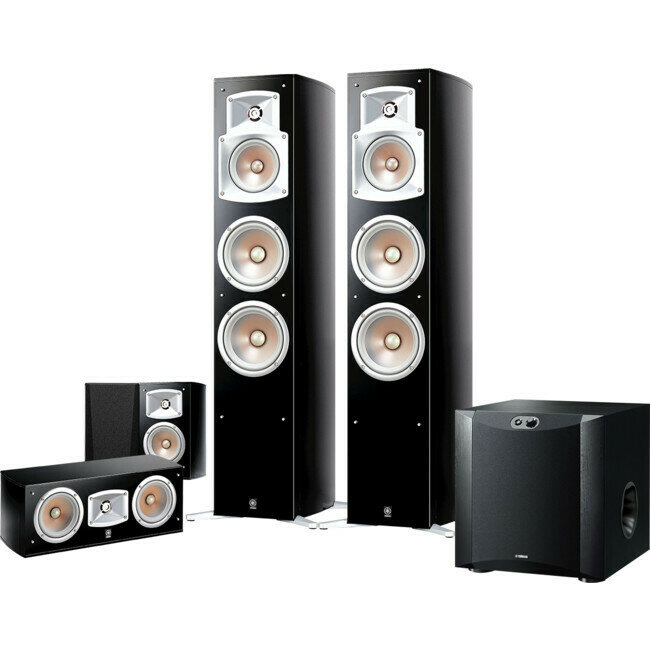

Kit inludes:
- NS-555BG X 1 PR 3-Way Bass-Reflex Tower Speaker System
- NS-333BG X 1 PR 2-Way Acoustic Suspension Speaker System
- NSC-444B X 1 2-Way Dual-Woofer Acoustic Suspension Center Channel Speaker System
- NS-SW300B X 1 - 10& active subwoofer
NS-555 | ||
• Type | 3-way bass reflex speaker system | |
(Magnetic shielding type) | ||
• Drivers | 2 x 16 cm (6.5&) cone woofer) | |
1 x Wave guide horn 13 cm (5&) conemid-range | ||
1 x Wave guide horn 2.5 cm (1&) dome tweeter | ||
• Impedance | 6 Ω | |
• Frequency Response | 35 Hz to 35 kHz | |
• Nominal input power | 100 W | |
• Maximum input power | 250 W | |
• Sensitivity | 89 dB / 2.83 V/m | |
• Crossover Frequency | 3 kHz | |
• Dimensions (W x H x D) | 222 x 980 x 345 mm | |
• Weight | 20 kg | |
NS-C444 | ||
• Type | 2-way acoustic suspension speaker system | |
• Driver | 2 x 13 cm (5&) cone woofer x 2 | |
1 x 2.5 cm (1&) dome tweeter | ||
(Magnetic shielding type) | ||
• Impedance | 6 Ω | |
• Frequency Response | 55 Hz – 35 kHz | |
• Nominal input power | 100 W | |
• Maximum input power | 250 W | |
• Sensitivity | 89 dB / 2.83 V/m | |
• Crossover Frequency | 3 kHz | |
• Dimensions (W x H x D) | 514 x 190 x 213 mm | |
• Weight | 7.3 kg | |
NS-333 | ||
• Type | 2-way bass reflex speaker system | |
(Magnetic shielding type) | ||
• Drivers | 1 x 13 cm (5&) cone woofer | |
1 x 2.5 cm (1&) dome tweeter | ||
• Impedance | 6 Ω | |
• Frequency response | 60 Hz to 35 kHz | |
• Nominal input power | 60 W | |
• Maximum input power | 150 W | |
• Sensitivity | 87 dB / 2.83 V/m | |
• Crossover Frequency | 3 kHz | |
• Dimensions (W x H x D) | 200 x 320 x 213 mm | |
• Weight | 5.5 kg |
Type | Advanced YST II and Front Firing | |
---|---|---|
Driver | 25cm cone | |
Dynamic Power | 250 W | |
Frequency Response | 20-160 Hz | |
Advanced YST | Advanced YST II | |
High Efficiency Power Amplifier | Yes | |
Twisted Flare Port | Yes | |
Standby Power Consumption | 0.5 W | |
Dimensions (W x H x D) | 350 x 366 x 420 mm | |
Weight | 18 kg |
