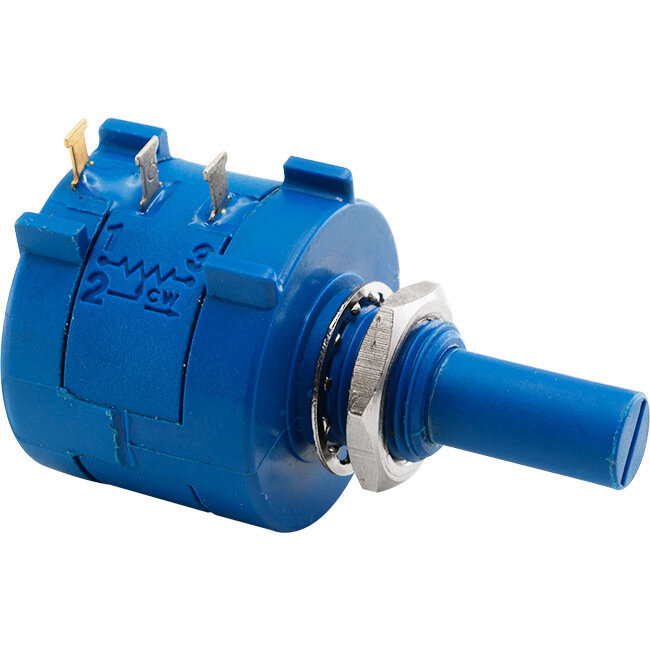

- High-impact, flame retardant case withstands shock and vibration abuse.
- Compact design requires minimal space behind mounting panel.
- Overall Diameter: 22.23mm
- Shaft Diameter: 6.35mm
- Bushing & Shaft Length: 20.62mm
- Body Length: 18.24mmL (Specifications):
- Max. Working Voltage: 1000V D.C.
- Resistance Law: Linear
- Resistance Tolerance: ± 5%
- Independent Linearity: ± 0.25%
- Working Temp. Range:- 55°C ~ + 105°C
- Electrical Travel: 3600°
- Dielectric Voltage: 1000V RMS
- Insulation Resistance: 1000M
- Value: 5K 
