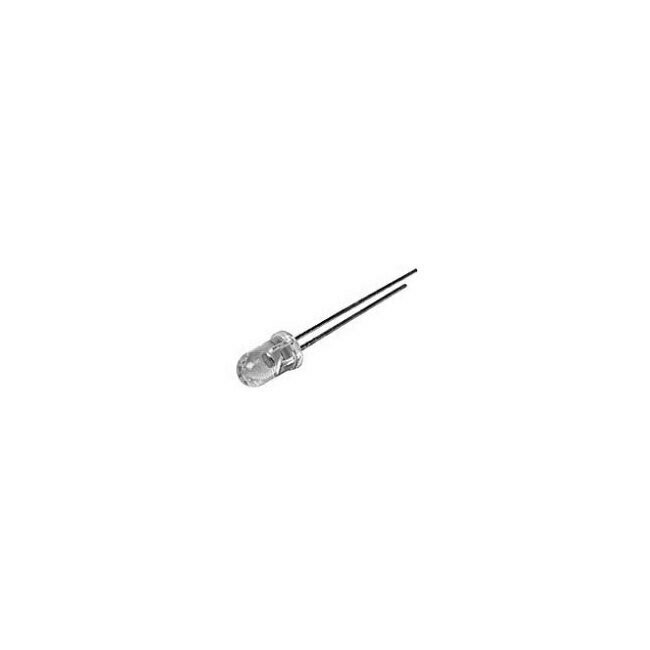

5MM INFRA-RED RECEIVER DIODE
Looks like a 5mm LED & has a clear transparent lens. Mechanically and spectrally matched to the IRE5 infrared emitting led lamp.

Specifications:

• Water clear lens
• Made with NPN silicon phototransistor chips
• NPN Collector-to-Emmiter Breakdown voltage: 30V
• Emitter-to-Collector Breakdown voltage: 5V
• Collector-to-Emmiter Saturation voltage: 0.8V Max
• Collector Dark current: 100nA@10V(Vce)
• Rise and Fall time: 3uS @ 5V(Vce)
• Breakdown voltage: 5V
• Power Dissipation: 100mW max
• Collector: Short Leg
• Emitter: Long Leg
