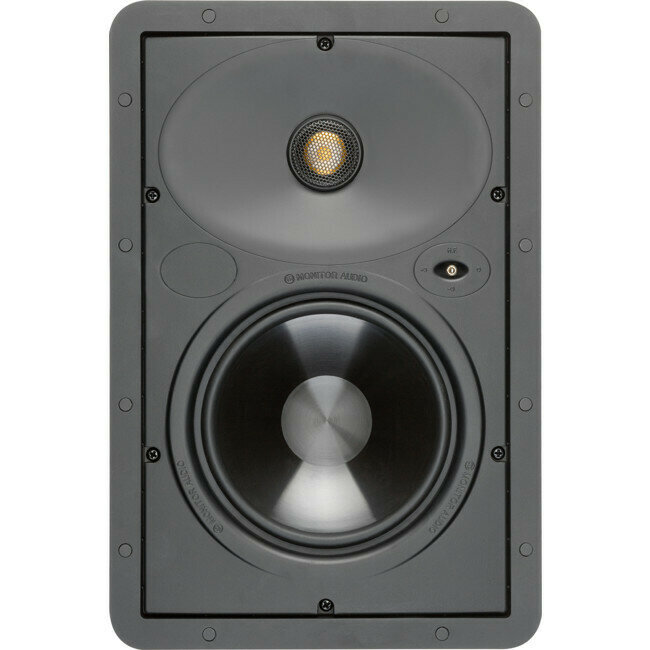

Incorporating a 61/2"MMP IIbass driver with Monitor Audio’s signatureC-CAMGold Dome tweeterto provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivotingtweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.
Key Features
Frequency response | 60 Hz – 25 kHz |
Nominal Impedance |
6 ohms |
Sensitivity (1W@1M) | 88.5 db |
Maximum SPL | 107.4dBA |
Power Handling (RMS) | 65 Watt |
Recommended Amplifier Requirements | 20-65 Watts |
Drive Unit Complement |
61/2"MMP IIcone bass driver |
Adjustment Controls | High Frequency Level Switch (+3 dB / 0 dB / -3 dB) |
Overall Dimensions (H x W x D))(Including Grille) | 370 x 250 mm (149/16x 913/16") |
Mounting Depth | 92 mm (35/8") |
Cut-Out Dimensions |
332 x 213 mm (131/16x 83/8")
|
Fixing Type | 6 position Tri-Grip dog fixings |
Connection | Gold plated ‘push’ type terminals |
Grille attachment | Magnetic - |
Construction Material | Mineral filled ABS, RoHS compliant |
Weight | 2.21 kg (4 lb 14 oz) |
Pre- Construction bracket | WB6Pre-Construction Bracket (Purple) |
Back Box | - |
