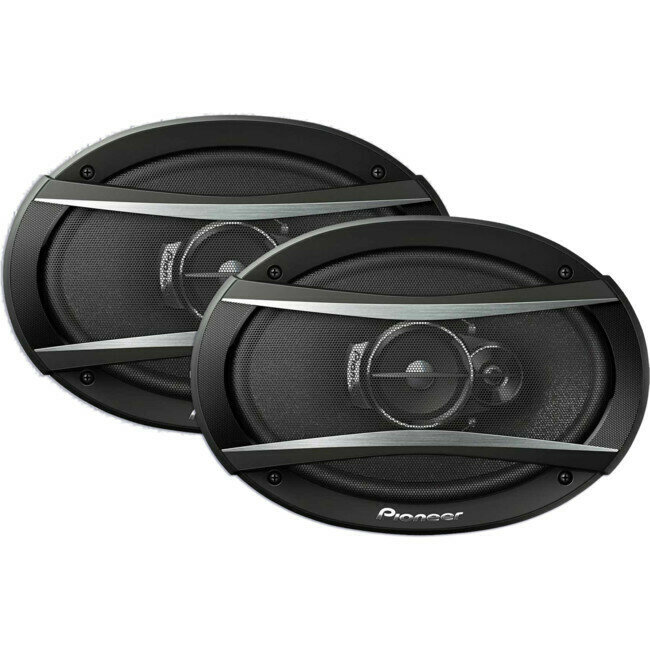

Pioneer's next generation of TS-A series speakersoffer improved bass and dynamic range, higher power handlingand a new cosmetic design. The TS-A speakers are designed toreplace the vehicle's factory installed speakers and produceimproved sound quality at exceptional value.
The TS-A line includes a new highly rigid Multilayer Mica Matrix Cone structure for a wider dispersionof sound with deeper bass, and a new tweeter designed to deliver an improved range of mid to high frequencies and produce optimized sound at higher volumes. The technology improvements offer better performance, enhanced sound quality and the ability to play a larger variety of popular music with heavy bass including hip hop, dubstep, and alternative rock.
LOUD & CLEAR
Various materials were carefully combined to develop a diaphragm of extra lightness and rigidity to reproduce sound clearly with outstanding responsiveness sensitivity and a suitable degree of internal loss. The new A-Series speakers feature a multilayer mica matrix cone where a surface containing mica properly maintains the cone's superior rigidity and internal loss while another layer makes excellent use of light, water-resistant material.
Size | 6& x 9& |
---|---|
Max Music Power (Nominal) | 420W (60W) |
Frequency Response | 28Hz to 36kHz |
Sensitivity | 92dB |
Impedance | 4O |
CrossFrequency | |
Mounting Depth | 71mm |
Mounting Depth with Mount Adapter | |
Cut Out Dimensions | 153mm x 222mm |
