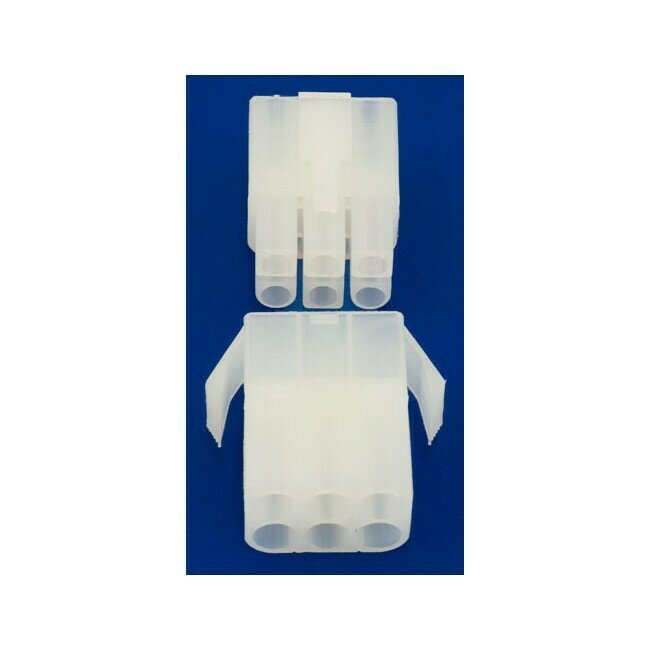

There are many special features of the 6007 connector series that exceed standard connector
design practices.
Rated at up to 300V AC/DC, these compact connectors will withstand
1,500V AC/minute, and operate within a temperature range of -25°C to 105°C.
Polarised to ensure correct mating, a positive locking latch also automatically engages at mating, and the
option exists for in line or hand fitted panel mounted installation.
The complete cell housing system fully covers and protects the contacts.
The high reliability 2mm O.D. crimp contacts, are easily snappedinto the housings by hand, with two sizes covering a wide wire range from
0.2 to 2.0mm2.
