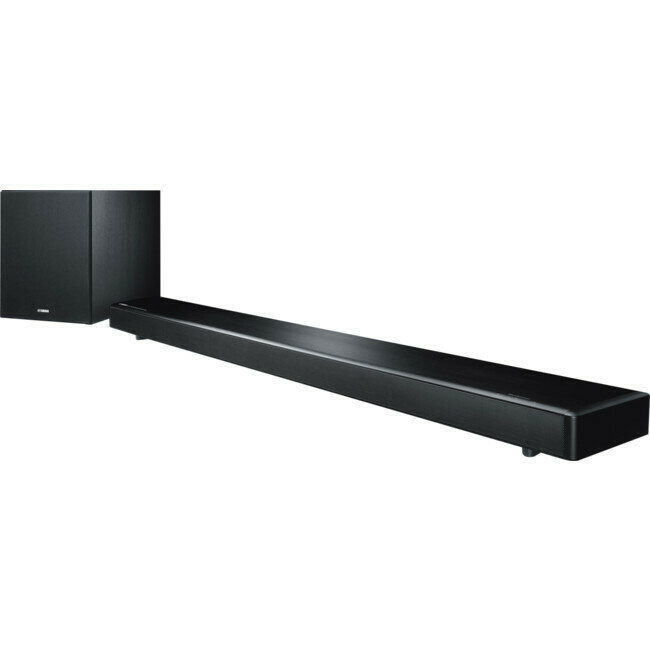

Designed for thrilling cinema surround sound without the need for speakers around the room, the YSP-2700 deliverssophisticated technology from its unassuming, low-profile form.
Settle in for a movie night with exhilarating surround sound performance or Share audio with other MusicCast Smart Speakers throughout the home.
MusicCast is a revolution in whole-of-home audio. Useall your MusicCast products together or separately - it’s completely up to you.
Control it, all from one app, designed to be intuitive, quick and simple to use.
Use a soundbar, a wireless speaker, an AV Receiver, Hi-Fi audio whichever suits you best, mix and match then expand your MusicCast system as time goes on.
The YSP-2700 focuses beams of sound and reflects themoff walls to create 7.1 channel surround sound from a singleBar.
The listening area is expanded so you enjoy an extremely powerful, natural sense of presence unobtainable with virtual surround methods.
The YSP-2700 is equipped with 16 x 2.8 cm high-quality array speakers which combine to create focused beams of sound.
It optimises the layout of its array speakers, boosting the reflection properties of the beams to maximise sound quality.
The centre unit is made from aluminium with outstanding rigidity.
The top cover is a thick aluminium panel with a luxurious, brushed finish.
The subwoofer has a simple design that blends nicely with any interior.
With a height of only 51 mm, the low-profile Sound Bar can be placed in front of a TV without blocking the picture.
The minimalist design and aluminium chassis will definitely add a sophisticated accent to your decor.
The subwoofer eliminates the need to connect cables, sosetup and placement are faster and easier.
This is aversatile subwooferthat deliverspowerful, high-quality bass.
MusicCast employs a high-performance wireless networkto deliver music and audio enjoyment.
It can stream digital music content from your smartphone, PC or NAS to other MusicCast devices in your home.
It can also share the music from external devices such as a TV or Blu-ray Player connected to the YSP-2700.
Audio content from Bluetooth smart phones or tablets can also be streamed to MusicCast devices in multiple rooms.
Yamaha’s IntelliBeam™ calibration system automatically sets the perfect listening environment.
All the user has to do is follow step-by-step instructions via the on-screen menu.
The system measures the room's acoustic properties such as size, shape and wall material, then adjusts the beamangles, focal lengths, volume and other audio parameters.
The result is precise sound optimisation for any size or shape room.
Yamaha CINEMA DSP programs are based on actual sound-field data, measured in famous concert halls, jazz clubs, live performance venues and theatres.
The result is an amazingly spacious and realistic sound field experience for enjoying music and viewing moviesin your living room.
The YSP-2700 features 10 different sound programs forselection.
Simply tap the beautifully designed screen and take control of all the audio equipment and all the music in yourhome.
You can hear all the music sources from your smartphonevia wireless Bluetooth® orAirPlay®connection.
You can play music from music apps, radio apps, or YouTube video hostingservices.
The YSP-2700 is equipped with the latest Bluetooth technology, making wireless operation more convenient than ever.
You can stream music from the YSP-2700 to Bluetooth headphones for private listening or to Bluetooth speakers.
The Compressed Music Enhancer restores frequency response lost during digital compression, so your musicsounds the way it should.
It isoptimisedfor any compressed content,for vivid, lively sound qualityduring wireless playback.
The function can be switched on and off via the remote control, according to the input source.
The YSP-2700 decodes HD Audio signals to ensure that you hear the best possible sound from Blu-ray Disc Players, as well as from other digital sources.
The YSP-2700 has 3 x HDMI input terminals and 1 x HDMI output terminal, and supports 4K 60p video signal pass-through.
It’s also compatible with HDCP2.2 digital copy protection.
This gives it extensive expandability, so you’ll be able to use it far into the future.
General | Output Channel | 7.1 channel |
---|---|---|
Output Power | 107W total power: 2 W x 16 beam drivers + 75W subwoofer | |
Power Consumption | (Centre Unit) 24W, (Subwoofer) 75W | |
Standby Power Consumption | (Centre Unit) 0.3W (HDMI Control off, Bluetooth stanby off), 1.8 W (Network standby on, Wi-Fi connection) ; (Subwoofer) 1.5 W (Wireless Subwoofer MODE) | |
Beam Drivers | 2.8 cm x 16 beam drivers | |
Subwoofer | 14 cm cone woofer | |
Dimensions (W x H x D) | (Centre Unit) 944 x 51 x 154 mm ; 37-1/8” x 2” x 6” (*without stand and antenna) , (Subwoofer) 295 x 297 x 307 mm | |
Weight | (Centre Unit) 4.0kg; 8.7 lbs., (Subwoofer) 9.1 kg | |
Input / Output | HDMI | 3 in/1 out |
Digital Optical | 1 in | |
Digital Coaxial | 1 in | |
Analog Audio | 1 in | |
Subwoofer output | Yes | |
HDMI | 4K Pass-through | Yes (50/60 Hz YCbCr = 4:4:4, HDR, HDCP 2.2) |
3D Pass-through | Yes | |
ARC | Yes | |
CEC | Yes | |
Auto Lip-Sync | Yes | |
Sound Technology | Surround Technology | Digital Sound Projector |
CINEMA DSP Movie | 3 (Sci-Fi, Adventure, Spectacle) | |
CINEMA DSP Music | 3 (Music Video, Concert, Jazz Club) | |
CINEMA DSP Entertainment | 4 (Sports, Talk Show, Drama, Game) | |
Listening Mode | SURROUND, STEREO, TARGET, My Surround, System memory | |
Compressed Music Enhancer | Yes | |
Audio Formats | Dolby TrueHD | Yes |
Dolby Digital Plus | Yes | |
Dolby Digital | Yes | |
Dolby Digital EX | Yes | |
Dolby Pro Logic II | Yes | |
Dolby Pro Logic IIx | Yes | |
DTS-HD Master Audio | Yes | |
DTS-HD High Resolution | Yes | |
DTS | Yes | |
DTS-Neo 6 | Yes | |
DTS-ES | Yes | |
DTS 96/24 | Yes | |
File Format | MP3, WMA, MPEG4 AAC, Apple LossLess(*1), WAV(*2), FLAC(*2), AIFF(*2) --- (*1) up to 96 kHz (*2) up to 192 kHz | |
Connectivity | Wireless Music Streaming | Yes |
Wi-Fi | Yes | |
AirPlay | Yes | |
Bluetooth Version/Profile | (Version) Ver. 2.1 + EDR / A2DP, AVRCP; (Codec) SBC, AAC | |
Bluetooth Maximum Communication Range | 10 m (without obstructions) | |
Ethernet | Yes | |
Other Features | IntelliBeam | Yes |
On-Screen Display | Yes | |
On-Screen Display Languages | English, German, French, Spanish, Italian, Dutch, Russian, Swedish, Turkish, Japanese | |
ECO Mode | Yes | |
App Control | Yes | |
Accessories (Optional) | Wall Mounting Bracket | SPM-K20 |
