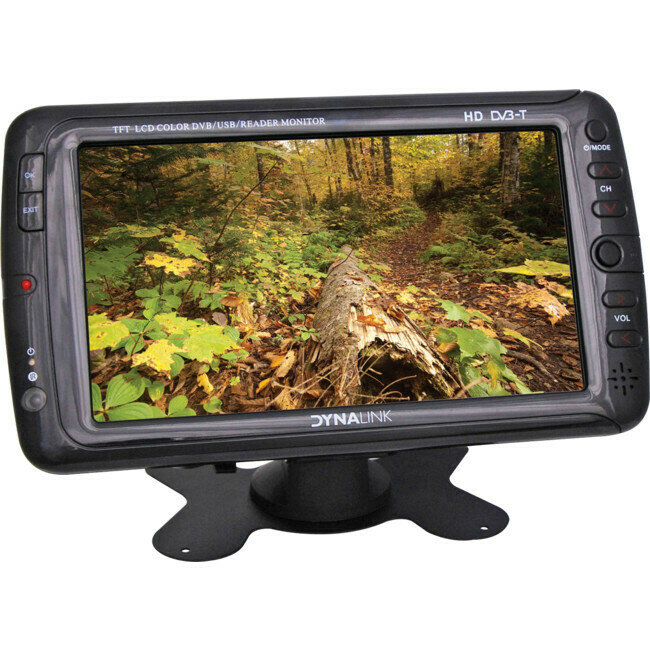

7& Inch Digital In-Vehicle Portable Television

These TVs are equipped with a digital HD?tuner and USB PVR functionality. Record high definition programs direct toUSB! It is suitable as a portable TV, or for fixed installation in cars, boats, trucks, caravans and RVs (12V operation). Fully self contained with speakers and remote control. Fitted with connections for external aerial, headphones and an external AV input. This allows connection to an AV source eg: DVD, game console, media player etc. USB?input allows playback of MP3/WMA music, JPG photos &recorded video. Includes 240V power supply, mounting bracketand high gain rooftop magnetic base aerial. Size:?205 x 117 x 36mm.

Features

• Rechargeable battery operation (up to two hours operation on a full charge).
• DVB-T digital High Definition TV tuner with in-built telescopic antenna.
• AV IN socket for composite video plus stereo audio.
• External antenna for improved reception.
• USB Playback and PVR function.
• Plays photos, movies, music from USB Flash Memory.
• TFT 7” LCD screen with HD resolution.

{tab Specifications}

LCD Screen

• LCD screen size: 7'' TFT LCD (17.8cm) 16:9 ratio
• Response time: R:10/ F:20 milliseconds
• Contrast ratio: 300:1
• Resolution: 800(H) X 3(RGB) X 480(V)
• Viewing angle: U: 40/D: 60 R/L: 60
• Brightness: 200cd/m2
• Illumination: LED

DVB-T System

• Input frequency: VHF - 177.5MHz - 226.5MHz; UHF - 474MHz - 858MHz
• Input Voltage: -80dbm to -20dbm
• Input Resistance: 75 Ohm
• Input code rate: 4.98 -31.67 Mbit/s (8MHz band width)

COFDM

• Modulation: QPSK, 16-QAM, 64-QAM, 256-QAM
• Bandwidth: 7MHz & 8MHz (7MHz default)
• FFT mode: 2K/8K

Decode Standard

• Video standard: MPEG1, MPEG4, SP+ASP@L5D, DiVX13, 114,x6, x, Home Theatre and HD Profile
• HD: 1080I: JPEG (support 422/411/420/444/440 format)
• Input code rate: Max 60Mbit/s
• Audio standard of decode: MPEG 2, MP3, WMA, AAC-LC, MPEG1, HE-AAC
• Audio output mode: Stereo, double sound track (left and right)

USB Media

• Flash media: NFTS or FAT32, USB 2.0 or earlier
• Audio: WMA, MP3, M4A
• Video: AVI, MPG, DAT
• Picture: JPEG, BMP, PNG
• Record function: PVR record (Can record from EPG)

General

• OSD language: English, German, French, Italian, Spanish, Portuguese etc.
• Audio output: Speaker output: 0.5W×2, Earphone output < 15mW
• Video Input: 1.0mVp-p 75 ohm (with AV converter cable)
• Picture display mode: 4:3/16:9 Aspect ratio
• Connections: External antenna input jack, headphone jack, audio/video (AV) input and output, external power input jack
• Speakers: 2 x 27mmØ
• Internal battery: 7.4V/2000mAh, Up to twohours usage fully charged, depending on screen settings
• Car power adaptor: DC+12V
• AC adaptor: DC Output: 12V/1.5A
• Power consumption: ˜10W
• Operating temperature: 0 - 40°C
• Unit dimensions: 205W x 117H x 36D mm
• Weight: 450g including Battery

*Specifications are subject to change without notice.
