This line transformer adapts conventional 8-Ohm speakers for use with multi-speaker 70 Volt/100 Volt COMMERCIAL distributed sound system. It features high power handling with minimal insertion loss and wide frequency response to provide quality line matching of loudspeakers in high power systems

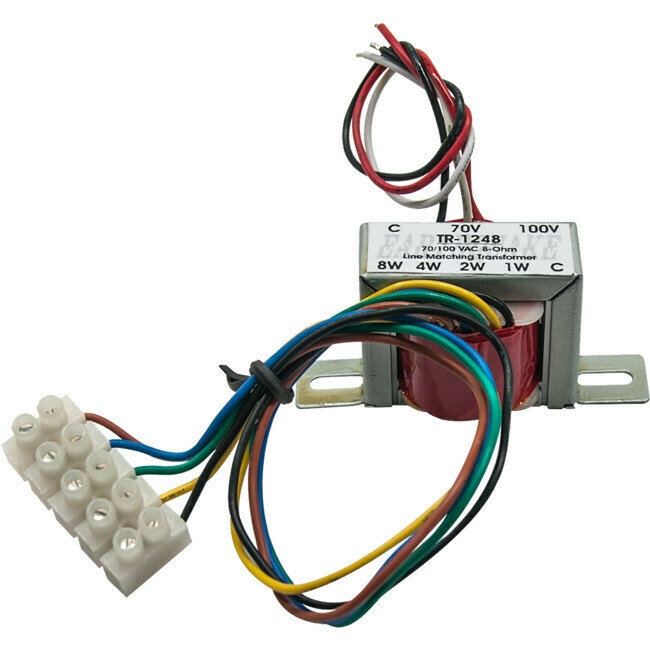

The TR-1248 is constructed of audio grade laminates and offers primary taps at 1, 2, 4 and 8 Watts with impedance of8-Ohms.
IMPORTANT: This is a commercial product. It should be installed by a Professional Licensed Technician.
Specifications
1, 2, 4 and 8 Watts primary taps with 8-Ohm impedance
Less than 0.6dB insertion loss
Frequency range(1dB): 70 Hz-20k Hz
Designed for external mounting to surfaces other than the loudspeaker
