CX Series power supply units provide modern power supply technologies and 80 PLUS Bronze efficiency at a competitive price point. It is black with black cable sleeving and connectors and a thermally controlled 120mm fan. The LLC resonant topology with DC to DC ensures complete compatibility with all modern day PCs.
80 PLUS Bronze certified efficiency and clever fan designallow for little or no detectable fan noise during regular operation.
The matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.
CX Series is built and tested to strict standards for trouble-free installation and smooth operation.
Every Corsair power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes intothe CX Series, because you need confidence and reliability regardless of your build budget.
Long cables make CX Series suitable for installation evenin full-height tower cases, and the generous cable count allows you to power multiple components and storage devices.
Once you've installed a PSU, you shouldn't have to think about it. Employing a thermally controlled fan makes the CX Series virtually silent at idle, and the large diameter reduces noise even when you're pushing your system hard.
{tab Specification}
ATX Connector
|
1 |
Adjustable Single/Multi 12V Rail
|
No |
ATX12V Version
|
v2.4 |
Continuous output rated temperature C
|
40°C |
Continuous power W
|
750 Watts |
Fan bearing technology
|
Rifle |
Fan size mm
|
120mm |
MTBF hours
|
100,000 hours |
Multi-GPU ready
|
NO |
Power
|
750 Watts |
Warranty
|
Five years |
80 PLUS Efficiency
|
Bronze |
PSU Form Factor
|
ATX |
Zero RPM Mode
|
No |
iCUE Compatibility
|
No |
Cable Type
|
Sleeved |
C-Link Ready
|
No |
Dimensions
|
150mm x 86mm x 140mm |
EPS12V Connector
|
1 |
EPS12V Version
|
v2.92 |
Floppy Connector
|
0 |
Intel C6C7 sleep state compatible
|
Yes |
Modular
|
No |
PCIe Connector
|
4 |
Plug Type
|
NA |
SATA Connector
|
8 |
PATA Connector
|
8 |
Modern Standby Compatible
|
No |
Protection Circuits
|
OVP (Over Voltage) |
UVP (Under Voltage) | |
SCP (Short Circuit) | |
OTP (Over Temp) | |
OPP (Over Power) |

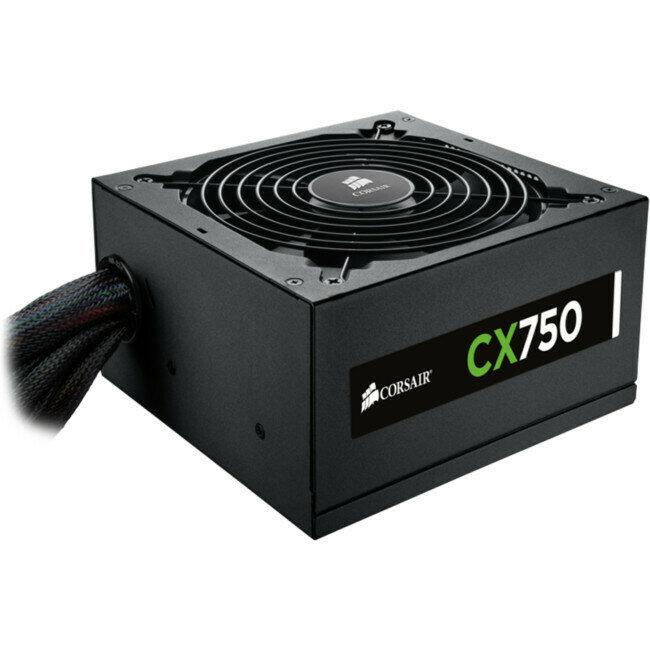

CX Series ATX Power Supply
Power Cord
x4 Mounting Screws
Pack of Zip-ties
Warranty Document
