75AMP ANDERSON CONNECTOR
Store
/
RP
/
COMPONENTS
/
PLUGS, SOCKETS & ADAPTORS
/
INDUSTRIAL
/
INDUSTRIAL
Product Details
UPC:
PT4407

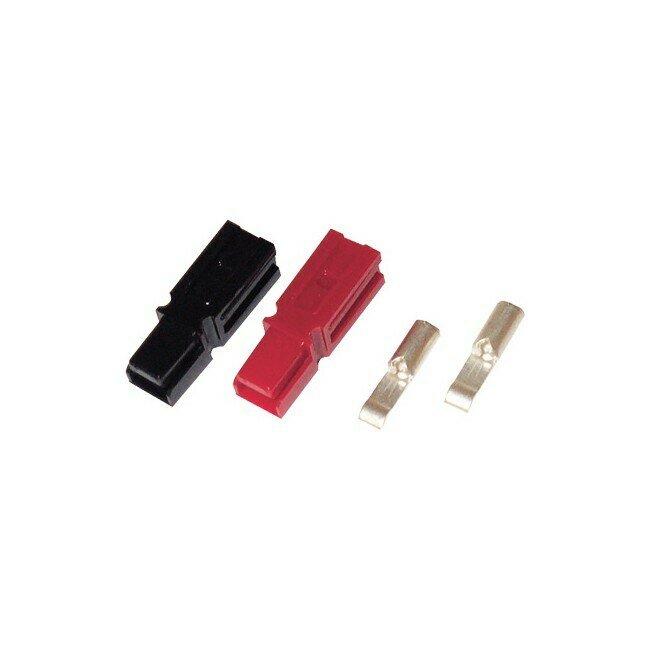

75A Anderson Connectors
At last! A high current DC connector.
These industry-standard connectors are used in automotive, marine, aviation, mining and most widely in industry.
They are the standard electric forklift track connector for example.
The body of the connector is cleverly designed to ensure correct polarity mating.
They are ideal for high current car wiring connectors.
Current Rating: 75A
Voltage: 600V (AC or DC)
Contact Barrel Wire Size (min/max): 8.4 - 33.6mm2 / #6- #16AWG
Maximum Insulation Dial to fit into back of housing: 11.10mm
Insertion Life (Cycles): 10,000 no load / 250 hot load(35A @ 12VDC)
Operating Temp: -20 - 105 degrees C
Flammability: UL94 V-O
Show More
