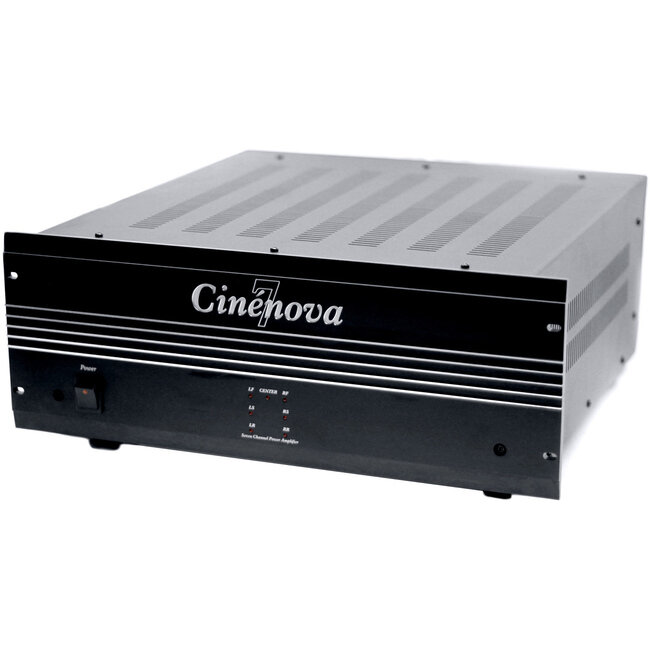

Two years of research. Three new technologies. Earthquake Sound proudly presents the Cinénova 7 multichannel amplifier

The Perfect Seven Channel Amplifier Cinénova7 is part of the legendary Cinénova series, known for its raw power but also transparency. Cinénova7 differs from its Cinénova Grande 7 counterpart in its powerrating. Earthquake designed this amplifier because of the high demand it received from customers. With a monaural design, the Cinénova7 has a clear sound quality with low distortion. At 8Ωs, the Cinénova7 outputs 170 WRMS measured with all channels driven. This is the perfect amount of power for most home theaters and can accommodate a diverse amount of audio set-ups.

This rack-mountable amp will blend in perfectly with your existing system. And like all Cinénovas, the Cinénova7 is not just a purchase, it is an investment. Cinénova7 will provide you with true amplification no matter how your system changes and upgrades. With the increasingly popular surround sound audio format available with most movies, nobody needs to miss out on the true theater experience.

{tab Specifications}

• 250 watts pr channel 8Ω IHF
• 400 watts pr channel 4Ω IHF
• 600 watts pr channel 2Ω IHF
• RCA Input (up to 6Vp-p)
• Fully Balanced XLR Inputs
• Input selector
• Input sensitivity/gain adjustment for each channel
• Gold plated speaker binding posts
• 12V DC Trigger input
• Supports Mono and Bridged connections
  • Perfect for using all 7 channels with a 5 speaker system
• Dimensions (HxWxD): 451 x 534 x 432 mm
• Black piano lacquer
• Shipping weight: 49kg

MODEL	Cinénova 7
Number of Channels	7-channels
Power Rating Per Channel	(8Ω load) Rated: 150 WRMS Measured: 170 (4Ω load) Rated: 250 WRMS Measured: 300 (2Ω load) Rated: 300 WRMS Measured: 350
Output Load Impedance	Safe with all loads from 4Ω to 16Ω
Input Impedance	RCA: 28kΩ XLR: 48kΩ
Input Sensitivity	Up to 6Vp-p
Voltage Gain (Av)	42V Gain Relative to 1 watt
Frequency Response	up to 30kHz ±0.1dB
Crossover Filter (low-pass/high- pass)	n/a
Total Harmonic Distortion + Noise	0.003% at 1 watt
Signal to Noise Ratio (A-Weighted)	Greater than -121 dB
Cross Talk / Channel Seperation	Greater than -110 dB from 17Hz to 40kHz
Slew Rate	60V/microsecond
Damping Factor	600 at 8Ω, 300 at 4Ω
DC Output Offset	0.004
Power Requirement	120 VAC/240 VAC Factory Pre-set
Chassis Dimensions (H x W x D)	175mm x 432mm x 413mm
Net Weight	36.3kg
Shipping Weight	45.0kg

{tab Downloads}   {tab About Earthquake Sound}

In 1984, Joseph J. Sahyoun, a music freak and Aerospace Engineer unhappy with the existing loud speaker technology and performance, decided to put his advanced knowledge in aerospace technology to use. He pushed his technological boundaries to the limit to create the kind of subwoofer he could live with.

Earthquake's innovative audio technologies connect millions of people around the world with the sound solutions they need. EQ Sound designs, manufactures, and markets high performance audio systems for use in home and audio-video systems, and after-market and OEM automotive systems.
