8" 2-WAY IN-CEILING SPEAKER
SKU 39811230
AU$300.30
1
Save this product for later

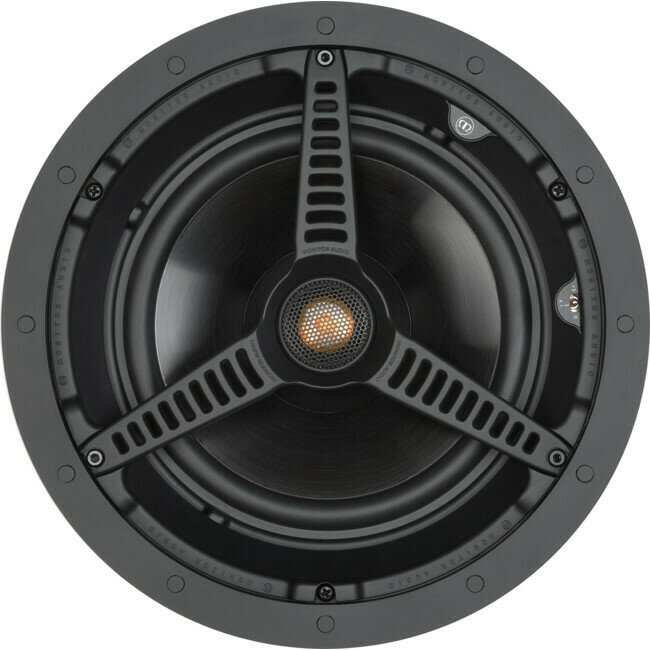

8" 2-WAY IN-CEILING SPEAKER
Product Details
UPC: C180XX-IC-SPK-WHT
Brand: MONITOR AUDIO
C180- 8& 2 WAY IN-CEILING SPEAKER
Incorporating an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivotingtweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.
Optional square grille can be usedwith this model.
Key Features
- 8& C-CAM driver
- C-CAM Gold Dome Tweeter
- 2-Way Design
- Paintable Grille
- Pivoting Tweeter
- Adjustable HF level
- Optional Square grille
Specifications
| Frequency response | 50 Hz – 25 kHz |
|
Nominal Impedance |
6 ohms |
| Sensitivity (1W@1M) | 90 db |
| Maximum SPL | 111.6 dBA |
| Power Handling (RMS) | 120 Watt |
| Recommended Amplifier Requirements | 30 - 120 Watts |
| Drive Unit Complement |
8" MMP II cone bass driver |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) |
| Overall Diameter (Including Grille) | 285 mm (111/4") |
| Mounting Depth | 122 mm (413/16") |
| Cut-Out Diameter | 247 mm (93/4") |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Connection | Gold plated ‘push’ type terminals |
| Grille attachment | Magnetic - (optional square grille- outer dimmensions 285 x 285 mm (111/4") |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 2.72 kg (6 lb) |
| Pre- Construction bracket | CB8Pre-Construction Bracket (Green) |
| Back Box |
