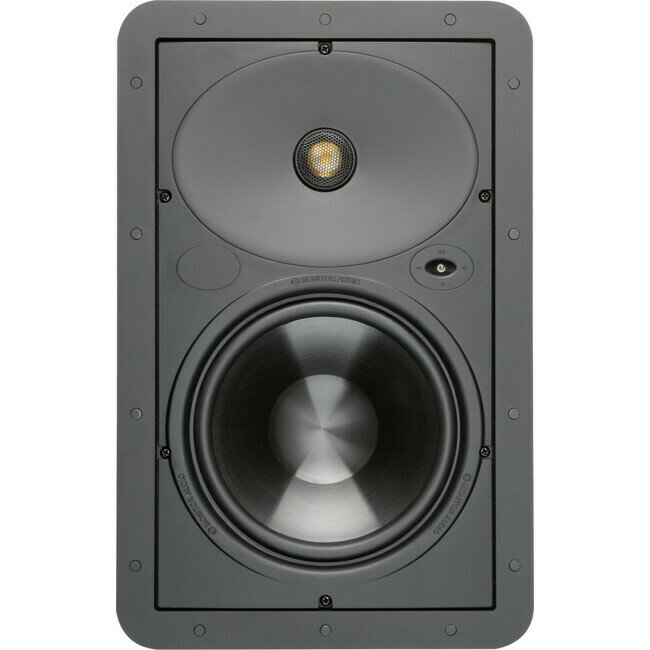

Incorporating a 8"MMP IIbass driver with Monitor Audio’s signature C-CAMGold Dome tweeterto provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivotingtweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.
Key Features
Frequency response | 50 Hz – 25 kHz |
Nominal Impedance |
6 ohms |
Sensitivity (1W@1M) | 90 db |
Maximum SPL | 111.6dBA |
Power Handling (RMS) | 120 Watt |
Recommended Amplifier Requirements |
30-120 Watts |
Drive Unit Complement |
8"MMP IIcone bass driver |
Adjustment Controls | High Frequency Level Switch (+3 dB / 0 dB / -3 dB) |
Overall Dimensions (H x W x D))(Including Grille) | 370 x 250 mm (149/16x 913/16") |
Mounting Depth | 104 mm (41/8") |
Cut-Out Dimensions |
387 x 234 mm (151/4" x 93/16")
|
Fixing Type | 6 position Tri-Grip dog fixings |
Connection | Gold plated ‘push’ type terminals |
Grille attachment | Magnetic - |
Construction Material | Mineral filled ABS, RoHS compliant |
Weight | 3.08 kg (6 lb 12 oz) |
Pre- Construction bracket | |
Back Box | WCBOX-L |
