8" 2WAY IN-CEILING SPEAKER

Store/RP/CONSUMER ELECTRONICS/AUDIO SPEAKER SYSTEMS/IN-WALL/CEILING SPEAKERS/IN-WALL/CEILING SPEAKERS

Product Details

UPC: CCM683

Brand: B&W

B&W CCM683- 8& 2WAY IN-CEILING SPEAKER - sold each

See nothing, hear everything

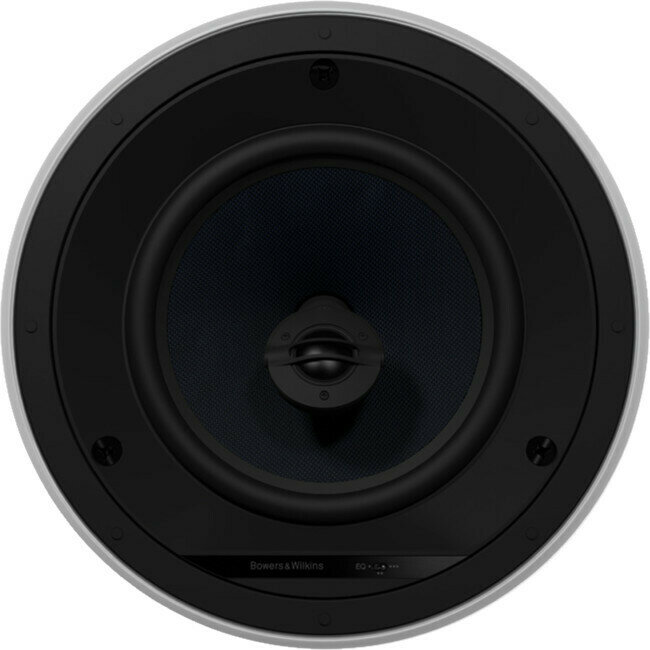

The CCM683 is a true high performance ceiling-mount speaker.

The speaker features a 200mm (8in) woven blue Aramid Fibre cone bass/ midrange driver and an aluminium tweeter in a neat circular die-cast chassis.

The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis provides extra rigidity that results in a cleaner, faster bass.

The speaker also has a three-position EQ switch for a better off-axis response.

The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound.

CI600--Care-and-attention

Specifications

Description	2-way in-ceiling system
Drive Units	1x Ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter 1x Ø200mm (8in) blue Kevlar® cone bass/midrange
Frequency Range (-6dB)	35Hz – 50kHz
Recommended Amp Power	25 – 130w
Sensitivity SPL (2.83V, 1m)	88dB
Impedance Nominal (min)	8ohms (4.5ohms)

Frame diameter	290mm (11.4in)
Cut-out diameter	250mm (9.8in)
Depth behind surface	133mm (5.2in)
Protrusion	4mm (0.2in)

Package Content:

CCM6 Series speaker assembly (baffle, frame andbezel, grille)
Cut-out template
Paint mask
Document pack containing Quick Start Guide andWarranty information
