Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreethome theatre sound.

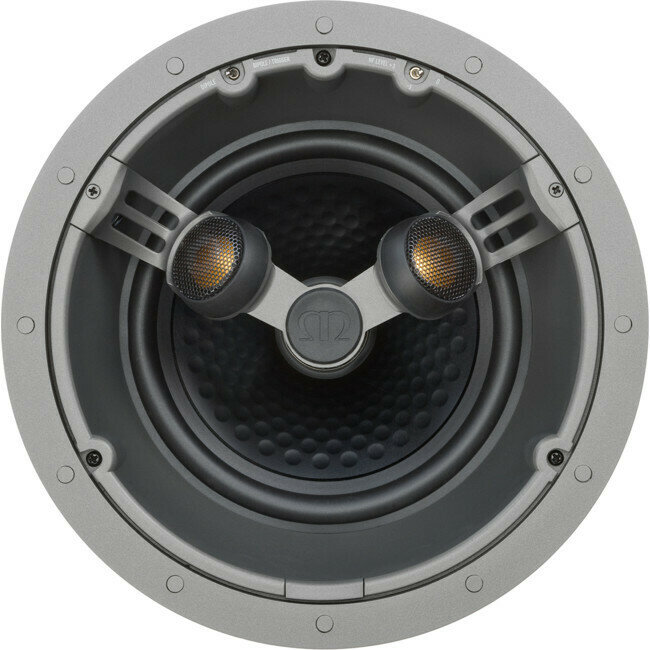

Incorporates an 8-inch C-CAM RST bass driver and dual 1-inch C-CAM Gold Dome tweeters mounted at aprecise fixed-angle for optimised performance.
Optional square grille can be usedwith this model.
Key Features
Frequency response | 45 Hz – 30 kHz |
Nominal Impedance |
6 ohms |
Sensitivity (1W@1M) | 90 db |
Maximum SPL | 111.6dBA |
Power Handling (RMS) | 120 Watt |
Recommended Amplifier Requirements | 30-120 Watts |
Drive Unit Complement |
8" C-CAM cone bass driver featuring RST |
Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) Bipole / Dipole Switch with Additional 12v Trigger Switching |
Overall Diameter (Including Grille) | 285 mm (111/4") |
Mounting Depth | 157 mm (63/16") |
Cut-Out Hole Diameter | 247 mm (93/4") |
Fixing Type | 3 positionTri-Gripdog fixings |
Connection | Gold plated ‘push’ type terminals |
Grille attachment | Magnetic - (optional square grille- outer dimmensions 285 x 285 mm (111/4")) |
Construction Material | Mineral filled ABS, RoHS compliant |
Weight | 3.2 kg (7 lb)) |
Pre- Construction bracket | CB8Pre-Construction Bracket (Green) |
Back Box | CMBOX-R |
