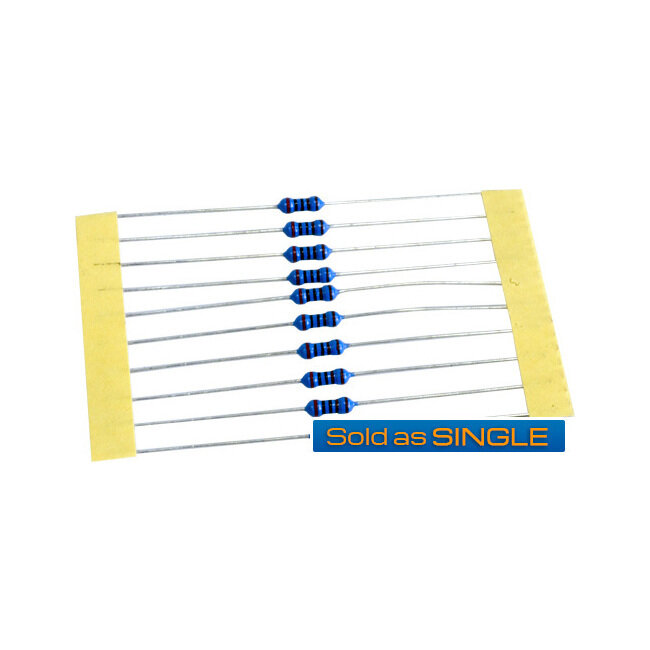

Construction: Base material high quality ceramic rod with high thermalconductivity. The resistive film is helixed by laser, the blue protective layer is epoxy resin. Marking consists of 5 coloured bands, 3 bands indicate significant values, the forth band is the multiplier, the fifth band is the tolerance
- Temperature Coefficients..±50 PPM 1°C
- Power Rating: 0.25W
- Max. Working Voltage: 250V
- Max. Overload Voltage: 500V
- Dimensions: L. 6.5mm D. 2.3mm d. 0.6mm H. 28mm
- Value: 82  (Per 1)
