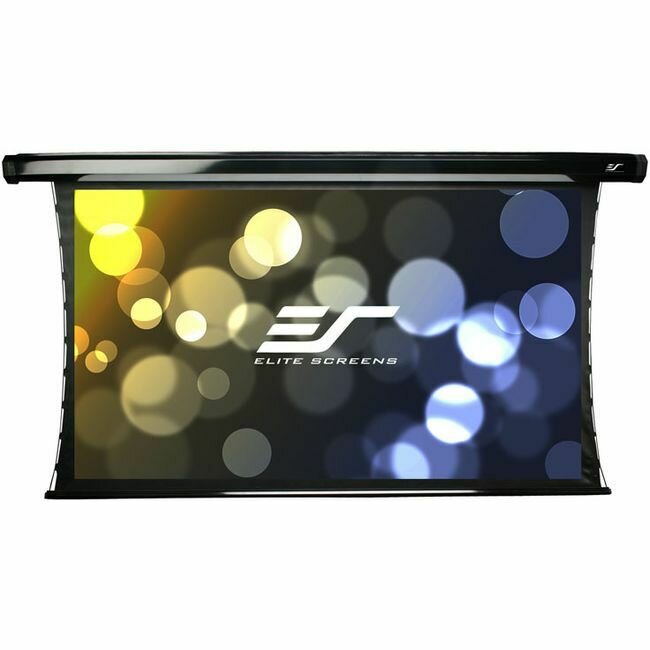

CineTension2 Series

The CineTension2 electric/motorized projection screen is the latest line of product in the electric home theater series produced by Elite Screens.

Although this projection screen is designed for the home theatre environment, it makes an impressive centerpiece to any corporate meeting room.

The CineTension2 gets its name from the tension cords that run vertically down both of its sides.

This feature eliminates &curling&, a common problem encountered on conventional electric screens, thus increasing the rigidity of the projection surface, which results in an improved picture quality.

The CineTension2 series, tension reinforced electric projection screen comes ready to "plug and play" out of the box with a wall control unit, IR (Infra Red) and RF (Radio Frequency) remote controls included.

Its sliding bracket feature allows the unit to be easilyaligned with wall support studs for easy installation. CineTension2 projection screens also sport a 12V-Trigger port, low profile extended IR "Eye" receiver and a 2 year warranty.

Premium Screen Material

• CineWhite Tension material provides uniform flatness in a versatile material making it a favorite for consumers and installers alike
• 160° wide viewing angle
• Standard 4-side black masking borders
• Available in 4:3, 16:9, 16:10, and 2.35:1 aspect ratios
• Diagonal sizes range from 84" - 150"
• Sound transparent models with AcousticPro1080 also available
• Rear projection material models also available

Total Control Options

• Standard Infrared (IR) and Optional ZR800D IR Universal Learning Remote system
• Standard Radio Frequency (RF) remote control operates screen from 100 feet away
• Low-voltage detachable 3-way wall switch for in-line control
• Extended IR "eye" sensor for in-ceiling Infrared operation
• Built-in 5-12 volt trigger port (RJ-45) enables Drop/Rise operation to synchronize with the projector's power cycle
• Optional wireless 5-12 volt (model ZSP-TR01) projectortrigger
• Optional in-wall switch

Easy Installation

• Floating installation brackets provide easy alignment with wood studs to accommodate a wall or ceiling installation
• Aluminum housing with enamel coating is moisture resistant
• Adjustable vertical limit switch regulates screen's drop/rise settings
• Shipped ready to plug & play with installation kitcontaining brackets, screws, and bubble leveler included
• Optional in-ceiling trim kit
• Optional extended 11x4 or 12x8 L brackets

Quality and Reliability

• Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
• Certified by AMX and CRESTRON
• 2-year parts and labor premium warranty

Included Accessory Package

• 1x Infrared remote control
• 1x Radio Frequency remote control
• 1x IR "eye" sensor
• 1x Wall Box

CineWhite (Tension Matte White) has broad light dispersion through diffusion uniformity, black & white contrast and true color rendition making it the most versatile in Elite's tensions screen product lines.

This tension PVC surface is the best choice for today's high-contrast ratio projectors in commercial or residential presentations.

The CineWhite material equals the performance to our MaxWhite product, but improves the experience with the superior surface flatness.

Uniform diffusion surface has black-backing to eliminate light penetration and is easily washable with mild soap and water.

• 1.1 gain with 160 degree wide viewing angle
• Surface can be easily cleaned with mild soap and water
• GREENGUARD® Indoor Air Quality and GREENGUARD®Children & Schools Certified
• Constructed of a multi-layer weave and textured surface coating

What's in the Box

• 1x CineTension2 Projection Screen
• 2x Sliding Brackets
• 1x Full Accessory Package
• 1x User Manual
