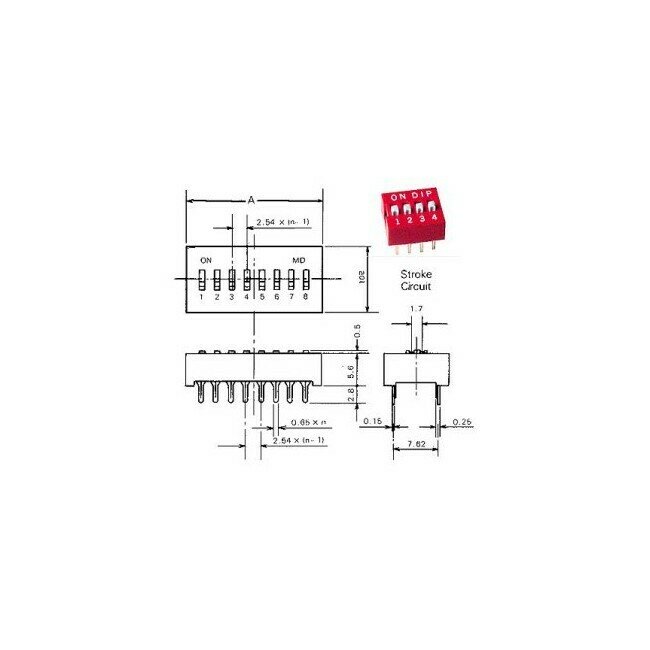

Features: (1) Standard 2.54mm pitch for direct PCB mounting. (2) The precision moulded case and operating mechanism is completely reliable through the use of UL approved material.(3) Sealed to allow auto soldering and to wash away soldering flux, will not breakdown during Ultrasonic weldingprocess es. (4) Gold plating on nickel underplate and a self-cleaning contact point function, give high performance and reliability. (Specifications): - 100mA 50V DC on load. -25m A 25V DC on switching - 100mA 5V DC on switching - Contact Resistance: 50m  - Insulation Resistance: 500V DC 100M  min - Dielectric Strength: 500V DC 100M  min - Durability: 3,000 ops/min. - Operating Force: 500gm ax. - Type: 8 Way - Dimensions (WHD): 23 x 5.6 x 11mm
