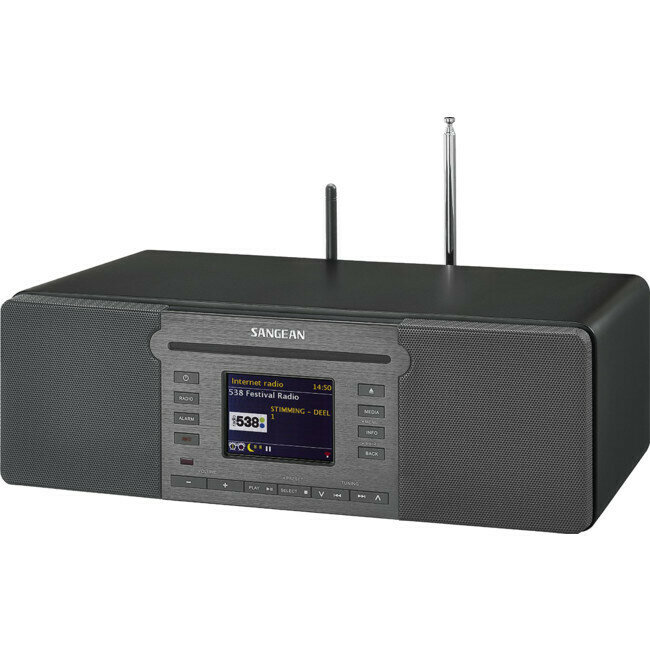

All in One Music System with DAB+ / FM-RDS / Aux-In / CD / USB / SD / Internet Radio / Bluetooth / Media Player& Digital recording via SD Card.
The UNDOK™ App enables remote control of the DDR-66BT running on your iPhone, iPod touch, iPad or Android smartphone.
UNDOK™ is the remote control app for Sangean Internet radios and media streamers for youriPhone, iPod touch, iPad or Android smartphone.
The app allows selection of Internet radio stations, selection and control of media for UPnP/DLNAmusic streaming from a local computer, server or NAS device,as well as control of FM radio and other functions (where these functions are present on the radio).
The Now Playing screen provides radiostation or media information with direct control of the radio volume.
Tuner | DAB | Bank III (174 - 240) | |
FM | Frequency (MHz) | 87.5 - 108 | |
Stereo | Yes | ||
RDS / RBDS | PS / PTY / CT / RT | ||
WiFi | IEEE 802.11 b / g (GHz) | 2.4 - 2.4835 | |
Ethernet | IEEE 802.3 | Yes | |
Internet Radio (iRadio) | vTuner (Frontier Silicon) | ||
Media Player | Yes - UPnP | ||
Presets | 30 (10x iRadio, 10x DAB+, 10x FM) | ||
iRadio | Tes (MP3 / WMA / Real Audio) | ||
Media Player | Yes (MP3 / WMA) | ||
Media | CD | CD / CD-R / CD-RW | Yes (CD Audio / MP3 / WMA) |
SD | Yes (CD Audio / MP3 / WMA) | ||
USB | Yes (CD Audio / MP3 / WMA) | ||
Aux-In | Yes | ||
Clock | Real time | Radio Control - DAB / iRadio / FM | |
Alarm | Tuner / Media / Buzzer | ||
Sleep | Yes | ||
NAP | Yes | ||
Display | Type | LCD | |
Display Area (mm) | 59 x 33.5 | ||
Graphic / Character Type | 128 x 64 | ||
Back Light | Yes | ||
Dimmer | Yes | ||
Features | Record - SD / USB | Yes | |
Software Upgrade | USB / Internet / External Connector | ||
Control | Touch Panel | ||
Audio | EQ | Treble / Bass Control | Yes |
EQ (Sound Effect Selection) | 7 (Flat / Jazz / Rock / Movie / Classic / Pop / News | ||
Amplifier | Speaker Output (Typ.) | 7W + 7W | |
Earphones Output | 15 + 15 mW | ||
Others | Class D amplifer | ||
Speaker | Size | 3 inches x 2 | |
Impedance | 8 ohms | ||
I/O Sockets | AC / DC - in | AC | |
Aux - in | 3.5mm Stereo | ||
Line - Out | 3.5mm Stereo | ||
Digital - out | Optical (SPDIF) Out | ||
Earphones | Yes | ||
SD | Yes | ||
USB | USB-A | ||
Ext. Antenna | WiFi, F-type (DAB+ / FM) | ||
RJ -45 | Yes | ||
Accessories | AC Cord | Yes | |
Remote Control | Yes | ||
Ext. Antenna | Wi-Fi, FM | ||
Dimensions | W x H x D (mm) | 356 x 121.5 x 252 | |
Weight (g) | 4100 | ||
Warranty | 12 months |
