Antec Prizm Cooling Matrix Slot Cooling ARGB Bracket and Fan. Supports Aura Sync, Mystic Light Sync, RGB Fusion, Polychrome Sync.

Unique Design - It’s Unparalleled!

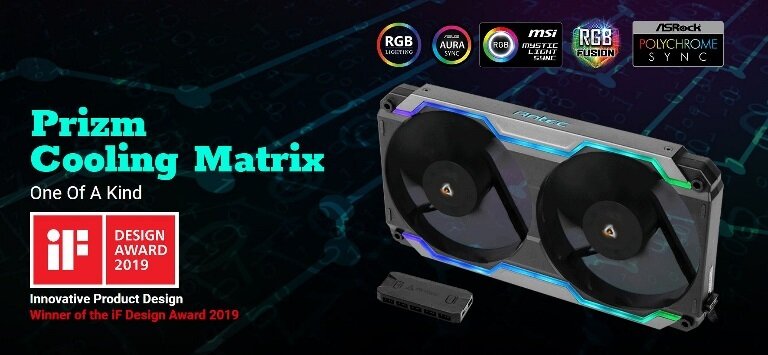

Prizm Cooling Matrix is the first of its kind in the performance PC market. Unlike conventional case fans, Prizm Cooling Matrix is a completely innovative, single bracket dual-fan housing assembly with two 120 mm fans connected simultaneously.

Streamlined ARGB Strip Styling
Prizm Cooling Matrix featuring with unique ARGB strips on both upper and lower sides creates an extraordinary light effect, which will make your gaming case become the most eye-catching one

FDB Technology
Fluid Dynamic Bearing fan brings the silent,
durable and stable operation to the next level.

ARGB Control
Fan Box
Up to 16.8 million colors and coordinate your own custom schemes for endless variety.

SPECIFICATIONS
Model Name Prizm Cooling Matrix
Fan Type PWM Fan
Dimensions (mm) 240 x 130 x 26mm
Bearing Type Hydraulic
LED Type ARGB
Fan Speed (RPM) 500 mini./1000/1800 max.
Airflow (CFM) 21.7 mini./43.53/77.2 max.
Air Pressure (mmH2O) 0.15 mini./0.6/1.83 max.
Fan Noise Level (dBA) under 15.6/18.1/32.9 max.
Lifespan 45000 hours
Connector Fan: 4 pin ; ARGB: 3 pin
Rated Voltage FAN: DC12V ; LED: DC5V
Operating Voltage FAN: DC7~13.8V; LED: DC4.5-5.3V
Rated Current (A) FAN: 0.45A ; LED: 0.55A
Fan Control Box ARGB port x 5, PWM fan port x 5,
SATA, Mode, External LED CTRL,
M/B Sync, LED Speed
Net Weight 0.35 Kgs
Gross Weight 0.6 Kgs
Warranty 2 years
UPC# 0-761345-77518-2
Package Size 295 x 170 x 75 mm (DWH)
