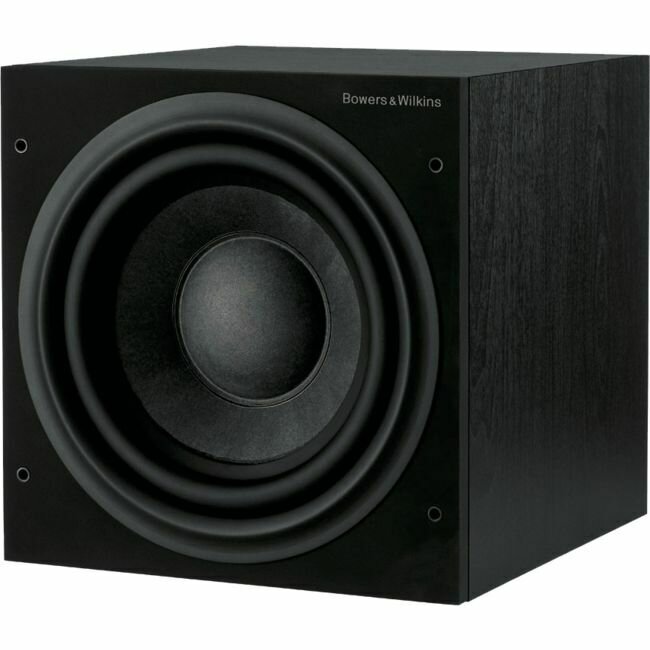

For big sound in smaller spaces, you can’t beat the ASW608, the most compact ofthe 600 Series subwoofers.

Its long-throw 200mm driver allows the ASW608 to movethe large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the unit running cool, even when the music or movie action is whipping up a storm.

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which providesthe stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.

Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.

Specifications:

Woven Kevlar
Crossover Tuning
Nautilus Tapering Tube
Flowport
Mushrooms
FST
Tweeter on Top
Matrix
Rohacell
Diamond Tweeters
Sphere / Tube Enclosure
De-Coupling
Nautilus
Description	Active closed-box subwoofer system
Drive unit	ø200mm (8 in) paper/Kevlar® cone long-throw
Frequency range	-6dB at 23Hz and 25/140Hz adjustable (EQ at A)
Frequency response	±3dB 32Hz – 40/140Hz adjustable (EQ at A)
Bass Extension	-6dB at 23Hz (position A)
	-6dB at 28Hz (position B)
	-6dB at 36Hz (position C)
Amplifier	Power output: 200W
Rated power consumption:	40W/ 0.5W standby
Input impedance:	33kW
Signal / noise:	>90dB
Functions:	Volume level – line in
	Volume level – speaker in
	Low-pass filter frequency – line in only
	Low-pass filter bypass
	Bass extension
	Bass roll-off alignment
	Auto sense on/standby
	Phase switch
Inputs:	Line In (RCA Phono)
	Speaker in (Binding post)
	12v trigger (3.5mm jack)
	Low-pass filter
	Active 4th-order, variable cut-off frequency
Dimensions	Height: 260mm (10.2 in) not including feet
	Width: 260mm (10.2 in)
	Depth: 330mm (13 in) including grille and controls
Net weight	8.85kg (19.5 lb)
Finishes	Black Ash Vinyl
	Light Oak Vinyl
	Red Cherry Vinyl
	Wengé Vinyl
