Overview

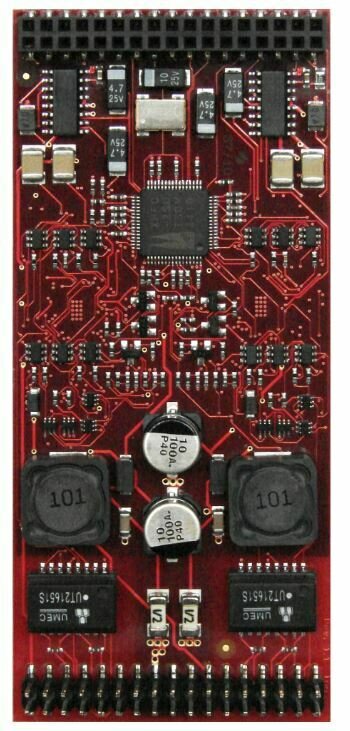

The BF2S02FXS Hybrid Module is a 2 Port BRI and 2 Port FXS Module for the beroNet VoIP Gateways
Each BRI port of the BF2S02FXS can be configured as NT (Network Termination) or TE (Terminal Equipment). In both modes, each BRI port can operate in Point-to-Multi-Point (PMP) or in Point-to Point (PTP) mode. The switching of the TE / NT mode and the switch off the termination resistors can easily be set in the software (Jumper Free) which makes the troublesome reposition jumpers unnecessary. Additionally to the above mentioned 2 BRI Ports the BF2S02FXS provides 2 ports FXS (Foreign Exchange Station) for the beroNet VoIP Gateways. FXS interfaces are used to connect devices like analog phones or faxmachines to your beroNet.
Specifications
· 2 BRI (S0) ISDN ports
· 2 analog FXS ports
· each BRI Port configurable as NT or TE with PIN interchanging
· termination resistors (100 ohm) per line
· TE/NT mode and termination is selectable via software (Jumperfree)
· layer 2 is Q.921 and layer 3 is Q.931 (EuroISDN DSS1) compatible
· DSS1 feature set: CLIP/No-Screening, CLIR, COLP, UUS, MCID, CD, CNIP
