Overview

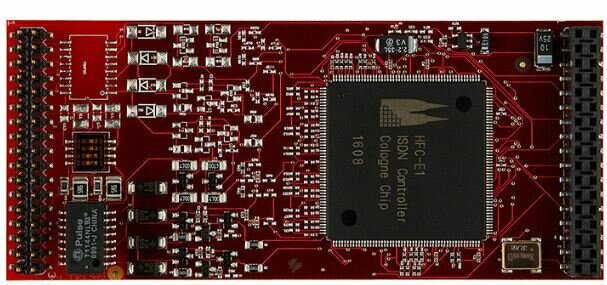

The BF1E1 Module can be configured individually to NT (Network Termination) or TE (Terminal equipment) mode. The default Pin-Out of this module is always TE mode with used PINS 1,2,4,5. If you want to use NT-mode you may need a “cross cable” which is optional available (BFE1Cross). Line termination (120 ohms) is selectable by DIP switches on the module.

Specifications
· 1 PRI (S2M) port
· configurable as NT or TE
· termination resistors 120 Ohm switchable via DIPs
· layer 2 is Q.921 and layer 3 is Q.931 (EuroISDN DSS1) compatible
· DSS1 feature set: CLIP/No-Screening, CLIR, COLP, UUS, MCID, CD, CNIP
· Q.SIG feature set: CNIP
· CE and TBR-4 compliance (ISDN PRI)
Dimensions and Weight
