Device Type

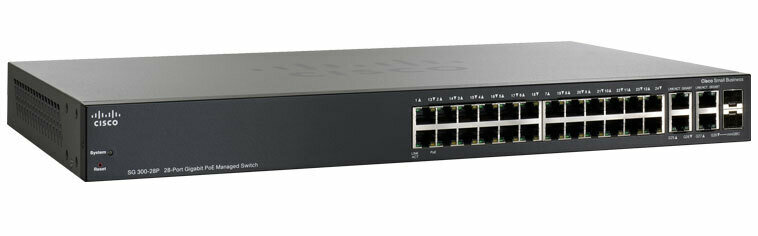

Switch - 28 ports - L3 - managed

Enclosure Type
Desktop, rack-mountable - 1U

Ports
26-port Gigabit + 2 x combo Gigabit SFP

Power Over Ethernet (PoE)
POE and POE+

Performance
Switching capacity : 56 Gbps ¦ Forwarding performance (64-byte packet size) : 41.67 Mpps

MAC Address Table Size
16K entries

Capacity
4K Active VLANs

Routing Protocol
Static IPv4 routing

Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI

Jumbo Frame Support
9KB

Authentication Method
Secure Shell (SSH), RADIUS, TACACS+

Features
Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, syslog support, DoS attack prevention, port mirroring, DiffServ support, weighted round-robin (WRR) queuing, broadcast storm control, IPv6 support, multicast storm control, unicast storm control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, access control list (ACL) support, quality of service (QoS), jumbo frames support, MLD snooping

Compliant Standards

RAM
128 MB

Flash Memory
16 MB flash

Status Indicators
Link activity, port transmission speed, system

Expansion / Connectivity

Interfaces
8 x 10Base-T/100Base-TX - RJ-45 - PoE ¦ 1 x console - 9 pin D-Sub (DB-9) - management ¦ 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 / SFP (combo)
