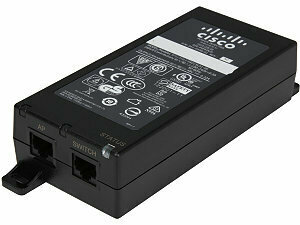

Cisco Aironet Power Injector
The Cisco Aironet Power Injector provides both power and data to a connected Cisco Aironet Access Point. The device serves the following functions:
•It provides Category 5 or better Ethernet media to the access point.
•It uses wires in an Ethernet cable to supply inline 15.4 W power to an access point. The power injector provides an easy and economical way to provide data and power to an access point located in areas where power is not available.
The power injector is used with the following Cisco Aironet Series Access Points:
•1040 series access points
•1140 series access points
•1260 series access points
•1600 series access points
•2600 series access points
•3500 series access points
A Category 5 or better Ethernet cable connects the injector to a 10/100/1000 Ethernet switch, hub, or network, and another cable carries power and data to the access point's WAN Ethernet port. The power injector's built-in power supply has a C14 connector that connects to a wall outlet or power strip. The power injector connects to a wall outlet or power strip.
