DESCRIPTION

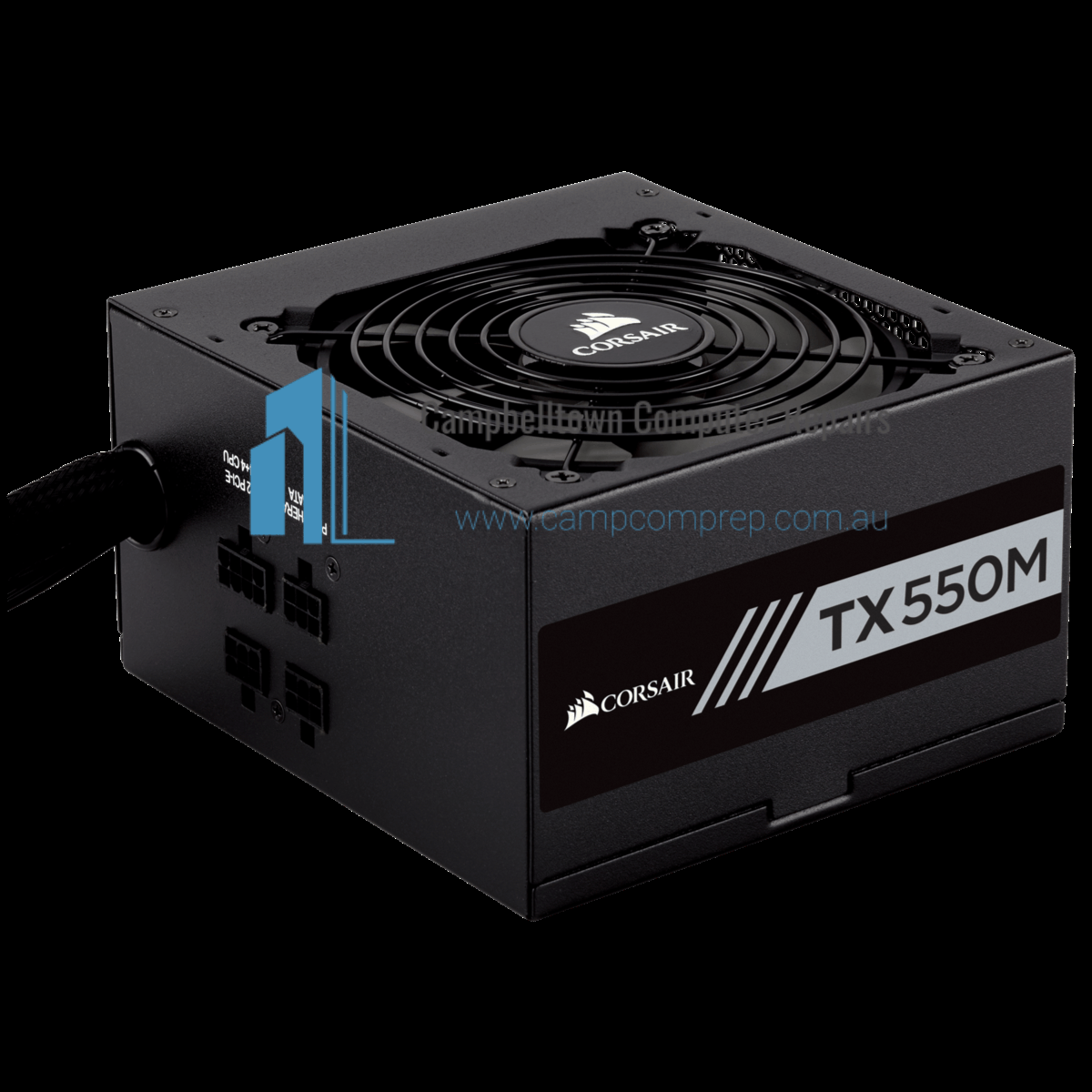

TX Series™ Modular CS550TXM — 550 Watt 80 PLUS® Gold Certified PSU

Gold-certified efficiency and semi-modular cabling for low energy use and easy installation
TX Series semi-modular power supplies are ideal for basic desktop systems where low energy use, low noise, and simple installation are essential. All of the capacitors are 105°C rated, Japanese brand, to ensure solid power delivery and long term reliability. 80 PLUS Gold efficiency reduces operating cost and excess heat. Flat, sleeved black modular cables with clearly-marked connectors make installation fast and straightforward, with good-looking results.

Warranty Seven years
Weight 1.7kg
MTBF 100,000 hours
80 Plus Gold
Power 550 Watts
Fanless mode No
Fan bearing technology Rifle Bearing
Fan size (mm) 120mm
C-Link Digital No
Continuous output rated temperature (°C) 50°C
Dimensions 150mm x 86mm x 140mm
Modular Semi-Modular
Sleeved cables Low-Profile, All Black
ATX Connector 1
EPS Connector 1
Floppy Connector 1
Four Pin Peripheral Connector 4
PCIe Connector 2
SATA Connector 5
Plug Type AU
