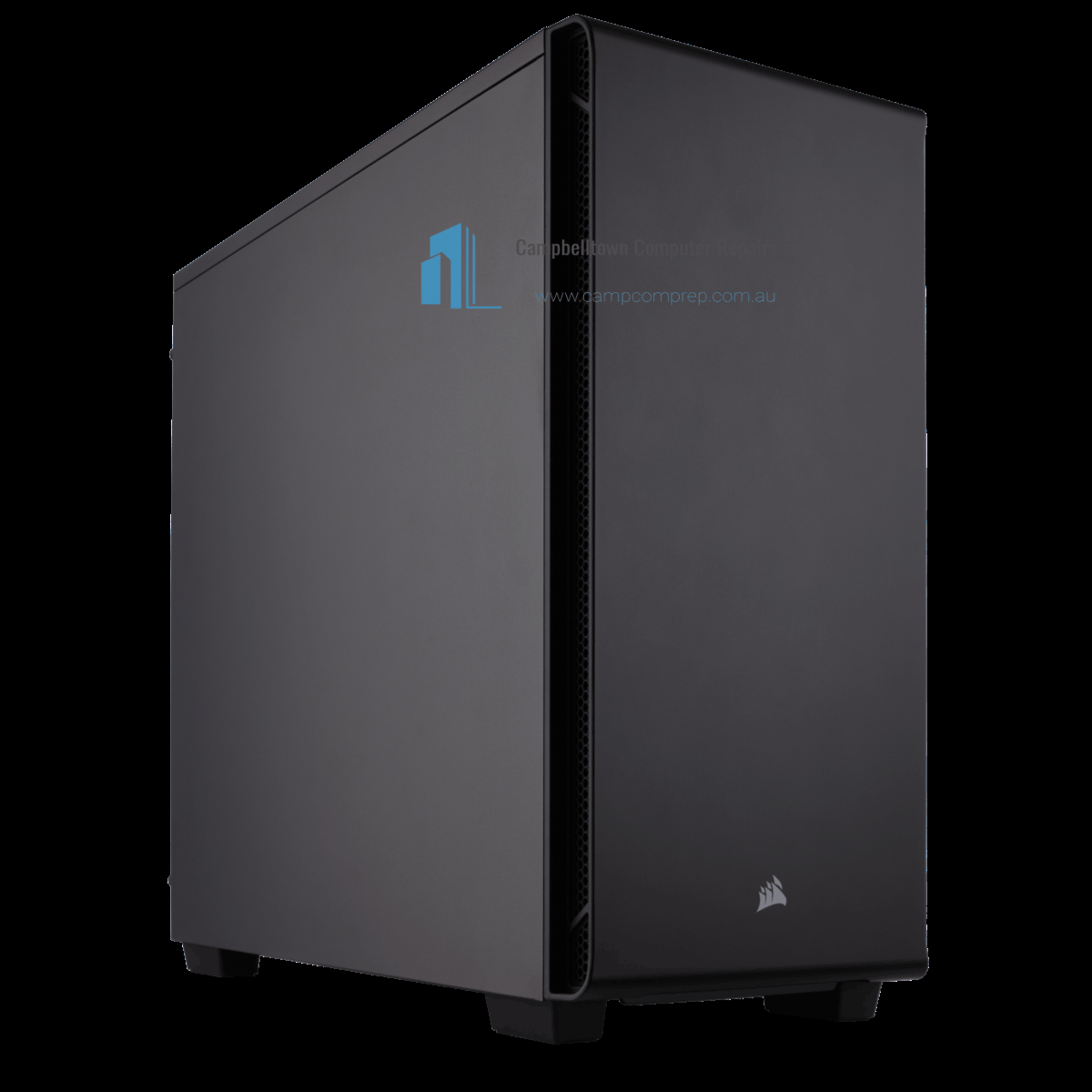

Rugged, Sleek and Simple
Carbide Series 270R is compact and engineered for building high-performance yet minimalist systems

Look Hot. Run Cold.
Take advantage of Direct Airflow Cooling as well as ample room for radiators in the front, top and rear. Keep your rig running cool and quiet with 270R’s enormous cooling potential.

Warranty Two years
Weight 7.12kg
Case Form Factor Mid-Tower
Dimensions 509mm x 210mm x 460mm
Case Motherboard Support Mini-ITX, MicroATX, ATX
Maximum GPU Length 370mm
Maximum CPU Cooler Height 170mm
Maximum PSU Length 225mm
Case Expansion Slots 7
Case Drive Bays (x2) 3.5in
(x2) 2.5in
Case Material Steel
Case Power Supply ATX (not included)
External Connections (x2) USB 3.0
(x1) Headphone Port
(x1) Microphone Port
Fan Mount Locations Front: (x3) 120mm or (x2) 140mm
Top: (x2) 120/140mm
Rear: (x1) 120mm
Fans Included Rear: (x1) 120mm
Radiator Mount Locations Front: 120/240/280/360mm
Top: 120/240mm
Rear: 120mm
Compatible Corsair Liquid Coolers H55, H60, H75, H80i, H90, H100i, H105, H110
